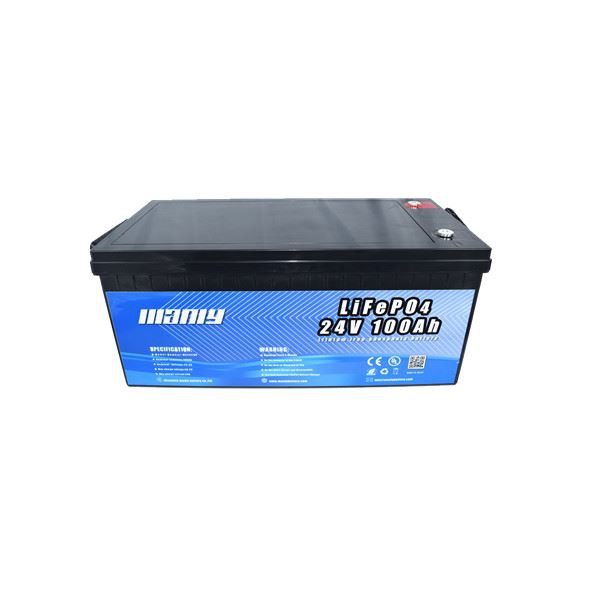

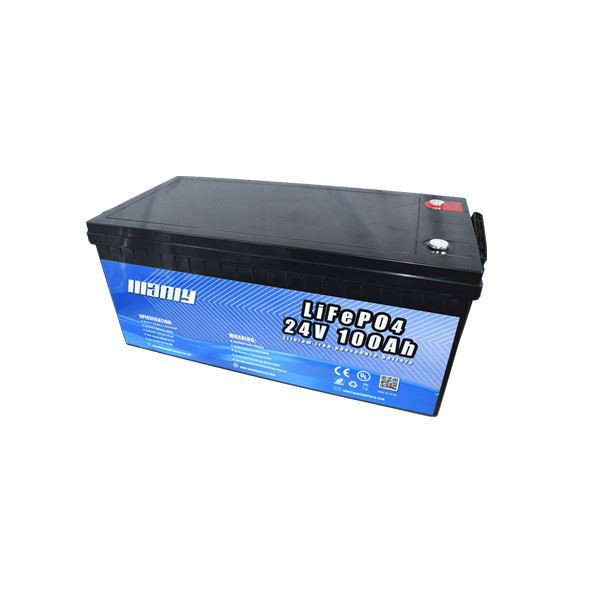

24v 100ah Lifepo4 batteries specification:
Model | ML-24100 LiFePo4 |
Nominal Voltage | 24V |
Nominal Capacity | 100Ah |
Internal Resistance | < 420mΩ |
End of charge Voltage | 29.2V |
End of charge Current | 100mA |
End of discharge Voltage | 18.4V |
Charge Method | 0.2C(0.5A)CC/CV |
Continuous charge current | 100A(MAX) |
Nominal discharge current | 100A(Can be customized) |
Peak Discharge Current | 200A (Can be customized) |
Dimension | 365*260*185mm (customized) |
Storage Temp | -10 ~45‘C |
Capacity@1C rate 0.2C | > 100Ah |
Cycle Life | Over 2000 times (Cycle @RT 0.2C rate, 85% DOD) |
Operating Temp | Charge: 0 ~45℃ |
Discharge: -10 ~70℃ |
Applications of 24v 100ah Lifepo4 batteries:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment
Features of 24v 100ah Lifepo4 batteries pack:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Maintenance-free operation.
* Broad operating temperature range.
