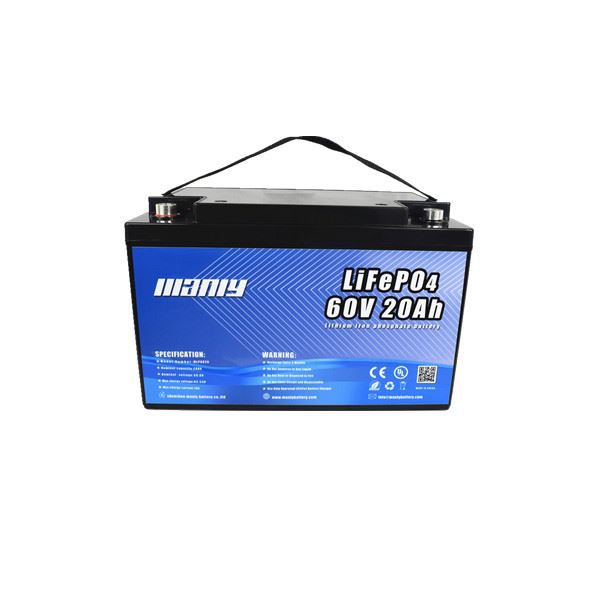

Customized 60V 20Ah electric rickshaw battery，lithium iron phosphate special for electric vehicle
Features
1. Continuous and stable low self-discharge, high-efficiency conversion rate
2. Powerful climbing and more durable
3. No significant reduction in capacity after 3500+ charge and discharge
4. Adopt intelligent battery management system, multiple protection, escort for customer's safety
5. Customized to be compatible with 99% of the models on the market
Specifications
| Item | Parameters |
| Battery Name | 60V 20Ah electric rickshaw battery |
| Battery Model | MLP6020 |
| Nominal voltage(V) | 60V |
| Nominal capacity(Ah) | 20Ah |
| Operating voltage range | 47.5V ~ 69.35V |
| Overcharge protection cut-off voltage(V) | 69.35V |
| Over-discharge protection cut-off voltage(V) | 47.5V |
| Maximum charging current | 10A |
| Continuous discharge current | 20A |
| Pulse discharge current | 40A(≤3S) |
| Service life | 3500+ |
| Charging temperature(℃) | 0～45℃ |
| Discharge temperature(℃) | -20～60 ℃ |
| Storage temperature(℃) | -20～35 ℃ |
| Battery temperature protection (℃) | 70 ℃ ±5 ℃ |
| Dimension(mm) | 233*213*185mm/Customize |
| Battery weight(kg) | About 9.8kg |
How to choose a suitable battery pack?
1. The voltage is the same as the original one.
2.The battery size same as the original. Or similar/smaller.
3. The battery plugs the same as the original (check the plug diagram)
Maintenance and care of lithium batteries
1. LFePO4 Electric Rickshaw Battery does not exist memory effect, with the charge, can reach 100% complete discharge
2. It is recommended that within 2 to 3 months, the battery pack can be charged and discharged individually
3. long-term non-use of the battery should be placed in a cool place to reduce the speed of the battery's own internal passivation reaction
3. Do not modify the battery by yourself and do not squeeze it by gravity
