Features

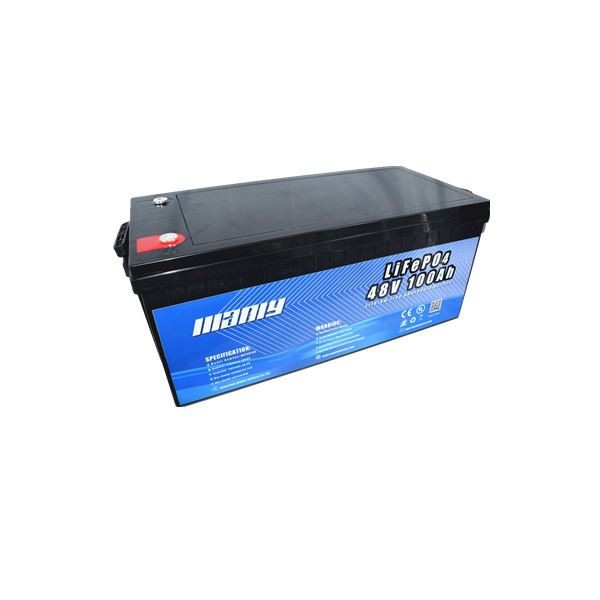

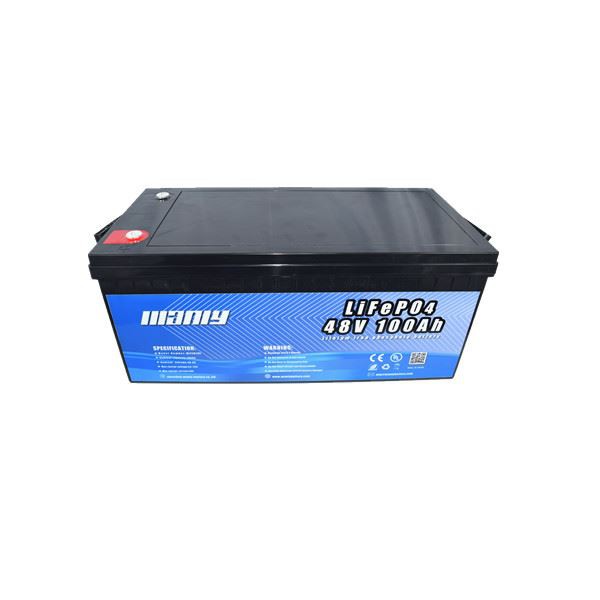

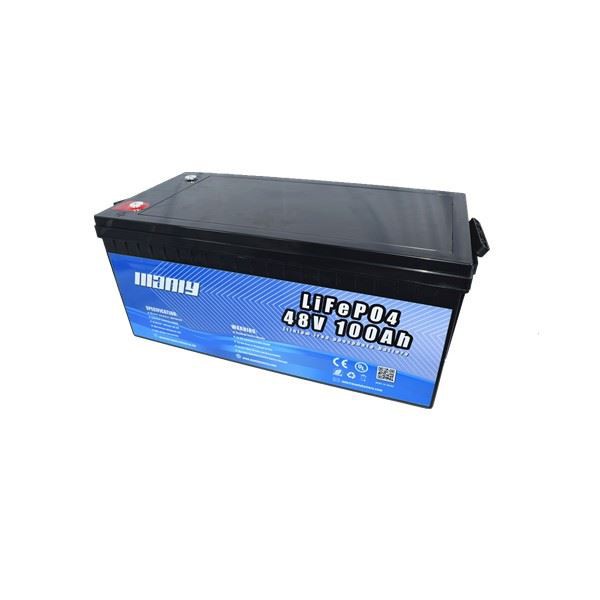

100Ah 48V LiFePO4
1.Liquid-poor, good safety.
2.Maintenance-free, wide range of operating temperature, high reliability, green and pollution-free.
3.Low-temperature resistance
4.Low cost, high energy density
Parameters
| Battery item | 100Ah 48V LiFePO4 |
| Brand name | MANLY/OEM |
| Model No. | MLP48100A |
| Service | OEM/ODM |
| Electric Characteristics | |
| Nominal Voltage | 48V |
| Nominal Capacity | 100AH |
| Components | Cells+BMS+Metal case+plug |
| Charge Cut-off Voltage | 54.75V |
| Discharge Cut-off Voltage | 36.5V |
| Charging and Discharging Parameters | |
| Continuous Discharge Current | 25A |
| Discharge Peak Current | 60A(Could be customized) |
| Cycle Life | 2000times≥100% |
| Charge style | CC/CV |
| Weight/size | Customized |
| Charge Temperature Range | 0℃~45℃ |
| Discharge Temperature Range | -20~60℃ |
| Storage Temperature | -20°C ~ 45°C |
| Certification | MSDS,CE,UN38.3 |
| Protection Level | IP56 |
| Communication | Customized |
Let us know your request and we will handle the rest for you: Customize for particular usage and realize the particular function.
MANLY Battery Factory Overview
Why Choose MANLY Battery?
1.Honest management, win the trust of our customers
2.With independent experimental equipment, R&D team, production line, and testing equipment.
3.MANLY has strict management and control for every progress in producing and 100% IQC/OQC.
4.Fast delivery time can be 10 ~ 15 working days.
Customers Feedbacks
Applications Of 48V Lithium Battery
Packaging & Shipping
FAQ
Q: Can you ship the battery by air?
A: Yes. We can ship by air via UPS, DHL, FedEx.
Q: Do you have a MOQ limit?
A: Yes, we do have a MOQ for different voltage and capacity, just email us at info@manlybatteries.com for more details.
Q: Can MANLY Battery accept the OEM/ODM order?
A: Of course, OEM & ODM are accepted, since we are manufacturers and we have a strong R&D team that customizes the different voltage, capacity, dimensions for customers' different applications.
Q: Can we put the LiFePO4 battery pack in parallel or series by ourselves?
A: YES, but the batteries should be in the same voltage and capacity, or it will influence the cycle life of the battery pack.
