Introduction

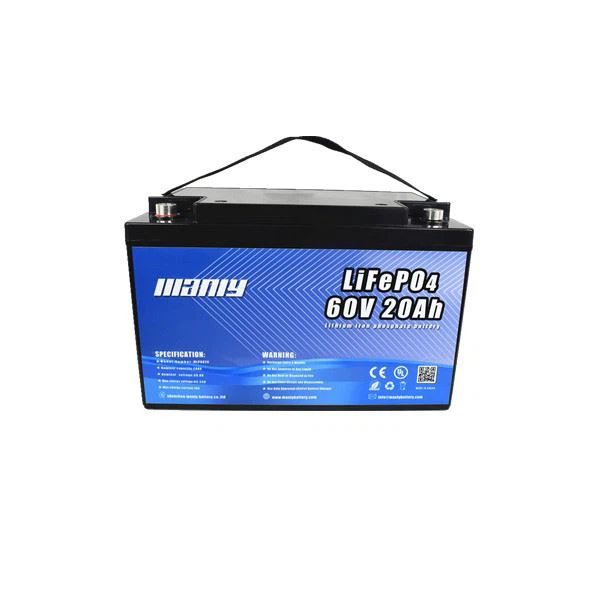

60V 20Ah Lithium Battery is customized for electric vehicles with a nominal voltage of 60V/19S and capacity of 20Ah. The charge mode is CC or CV. The material of the case is ABS plastic which can protect the battery from dirt and water without fear of wind and rain. The battery should be stored under the temperature from -10℃ to 45℃. Capacity, charging current and OEM/ODM can be customized. Battery combinations can be made according to customer requirements.
The size of 60V 20Ah Lithium Battery is small so it won't take a large space to store the battery. What's more, its weight is light, which makes it easy to carry and charge. The battery adopts the built-in battery management system(BMS) technology, protecting it from overcharge, deep discharge, overload, short circuit, low self-discharge rate, and providing more performance and longer life. What's more, it can be applied in many fields including engine start batteries, electric bicycles/ motorcycles/ scooters, golf carts/ baby strollers, power tools, solar and wind energy systems, etc.
Features
1. Customized 60V 20Ah Lithium Battery For Electric Vehicle
2. Small size and easy to place
3. Lightweight, easy to carry, and charge
4. Very long endurance
5. It can operate in temperatures as low as minus 20℃ without fear of severe cold
6. Waterproof splash without fear of wind and rain
7. The material is strong and not easily damaged
8. Open current, short circuit, and over-current situations will be intelligently protected
Parameters
| Item Name | Customized 60V 20Ah Lithium Battery For Electric Vehicle | ||
| Brand Name | MANLY/OEM | Part No. | MLP6020A |
| Battery Type | LiFePO4 battery | Nominal Voltage | 60V/19S |
| Nominal Capacity | 20Ah/Customized | Charge Mode | CC/CV |
| Discharge cut-off Voltage | 47.5V | Full Charge Voltage | 69.35V |
| Max charging current | 5A (Can be adjusted) | Max. continuous discharge current | 10A (Can be adjusted) |
| Peak discharge current | 30A (Can be adjusted, ≤3S) | Terminal | M6/M8/Anderson... |
| Case material | ABS Plastic case | Storage temperature range | -10 ℃ to 45 ℃ |
| Discharge temperature range | -20 to 60℃ | Charge temperature range | 0 to 45℃ |
| Coummunication Protocol | Available if needed | OEM/ODM | Customized available |
Lead-acid replacement and energy storage series are our most competitive products. OEM ODM from 6.4V~62V is supported MOQ 1pc, support customization, and matching services.
Send your inquiry and get a sample at sales@manlybatteries.com
Applications of 60V Lithium Battery

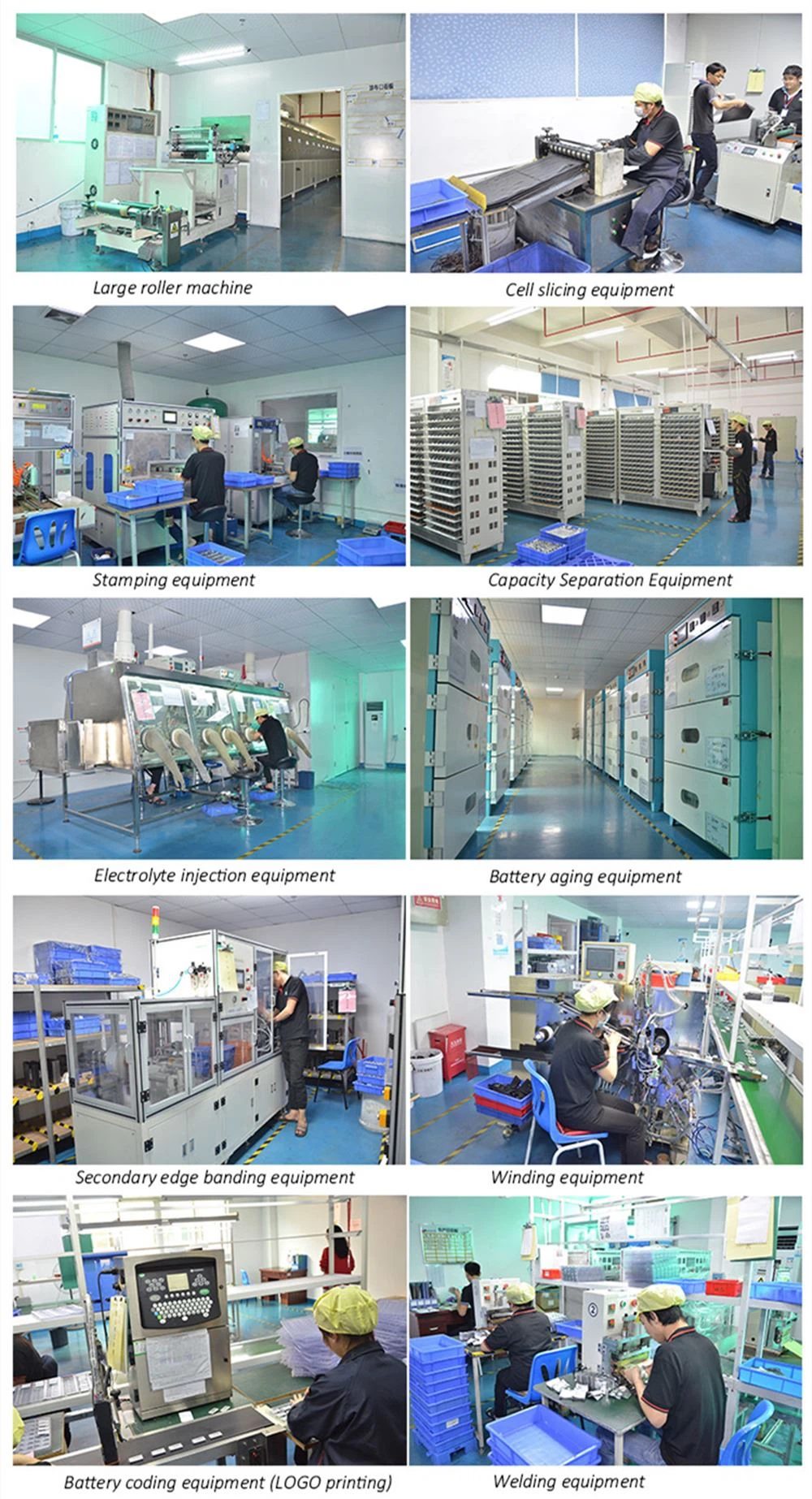

MANLY Battery Factory Overview
Why Choose MANLY Battery?
1. Over 12 years of history in the lithium battery industry
2. Advanced automatic production line
3. Developing technical solutions according to customer needs
4. Quick and professional response to your inquiries within 24h
Customers Feedbacks on MANLY's Batteries
Package & Delivery
FAQ
Q: Are you a factory or trading company?
A: We are MANLY Battery original factory.
Q: Can I have a sample order for OEM & OEM service.
A: Sure, we are glad to provide solar panel samples for customers to take a test to check the quality.
Q: How to proceed with an order?
A: Firstly, please tell us your requirements or applications; Then, we will provide a quotation; Next, the customer confirms the samples and places with a deposit for formal order; At last, we arrange the production.
Q: How long I can get it?
A: It depends on your order quantity, normally 20 ~ 25 working days for newly produced samples, 10 ~ 15 working days for mass production.
Q: What's your warranty for lithium battery products?
A: Generally speaking, it's a three-year warranty. For quality problems, we will send a new one to you.
If you want to look for other models or series, please contact us online or send us an email at sales@manlybatteries.com.
