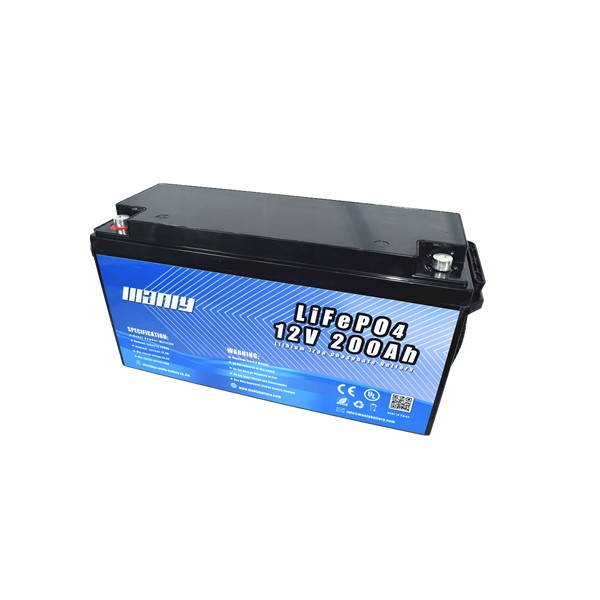

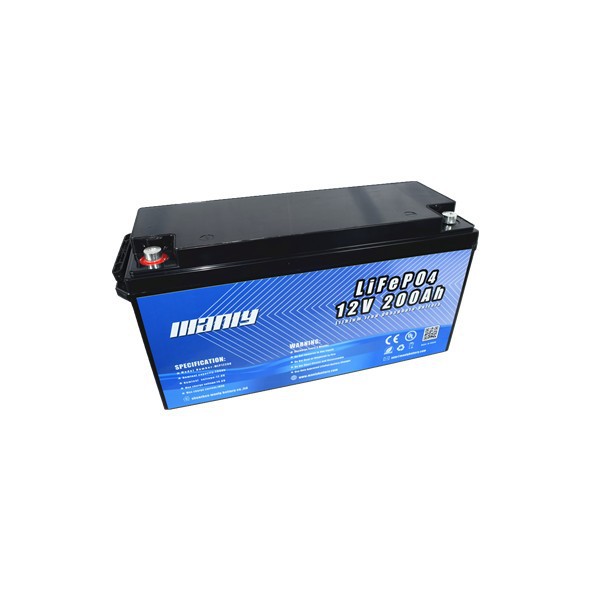

MANLY 12V 200Ah Battery LiFePO4
Features:
1.【200A BMS with 2560W Max. Load Power】MANLY 12V 200Ah Battery LiFePO4 has built-in 200A BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuit. Our battery has 8 cells inside, the auto motive grade cells are high-density and stable, it’s safe when used in our daily life and friendly for the environment. The 200A BMS could allow us to connect more applications, which supports max. 2560W load power, makes our life more convenient.
2.【1/3 Lighter Weight & Storage 100% Energy】Our MANLY 12V 200Ah Battery LiFePO4 is 30 lbs, lighter weighs than the same capacity of the lead-acid battery which is 130 lb. Even in 1/3 weight, our lithium battery still has the powerful capacity. For example, the energy density of Power Queen 12V 200Ah PLUS is 85.3Wh/lb (2560Wh/30 lbslb=85.3Wh/lb), while comparable with lead-acid battery is 19.69Wh/lb (2560Wh/130lb=19.69Wh/lb), our lithium battery provides a longer operation time.
3.【Max. 40.96kWh Energy Storage Solutions】MANLY 12V 200Ah Battery LiFePO4 support up to 4 in series and 4 in parallel (Max 4S4P) to get more capacity (200Ah, 400Ah, 600Ah, Max.800Ah) and higher voltage (12.8V, 25.6V, 38.4V, Max.51.2V). Max connected in 16 batteries to get a 51.2V 800Ah battery system, with 40.96kWh energy. This powerful storage solution could be widely used for the home solar system, emergency backup power system, and RV trip.
4.【Eco-Friendly Energy & Save 1/2 Power Fees】MANLY 12V 200Ah Battery LiFePO4 provides 4000+ cycles times and 2560Wh energy, which means our 200Ah LiFePO4 battery produces 10240kWh (2560Wh*4000 cycles times=10240kWh) in its 10-year lifespan, which means you will save 1/2 of power fees compare with using the utility power. you could enjoy self-reliant colorful life when using the battery in solar source.
5.【3-Year Warranty & Delivered in 1-3 Working Days】MANLY provides 3-year warranty for 12V 200Ah PLUS LiFePO4 battery.
Specification:
| Battery item | MANLY 200Ah 12V Lithium |
| Brand name | MANLY/OEM |
| Electric Characteristics | |
| Model No | MLP12200A |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200AH |
| Charge Cut-off Voltage | 14.6V |
| Charging and Discharging Parameters | |
| Discharge Cut-off Voltage | 10.0V |
| Continuous charge Current | 40A |
| Discharge Peak Current | 600A |
| Fast Charge Current | 1C |
| Cycle Life | ≥ 5,000 cycles, 0.2C |
| Size | Customized |
| Operation Temperature Parameters | |
| Charge Temperature Range | 0°C – 45°C |
| Discharge Temperature Range |
-20°C – 75°C |
| BMS Protection |
with overcharge, over discharge, short circuit protection |
| Weight | Customized |
| IP level | IP56 |
| Parallel /SeriesSupport | Yes |
| Certification | MSDS,UN38.3,CE,UL,CB,BIS,IEC |
Remark: Our products are customized, so the main data can be changed by customer’s requirements.
MANLY Battery Factory Overview
Why Choose MANLY Battery?
1. For Batteries LFP Prismatic cells , 5000+ cycles ,3- 5 Years Warranty , Support 4S4P , Group24 size ,12KG .
2. For services 24- hours after sales line , one step services , give you entile solutions for your solar system project .
3. For after sales Free mantenance , Free repair , Free replacement if can't repair during Warranty .
4. For customize needs we can customize for you , such Voltage , Capacity , discharge current etc.
5. For additional benefits For resellers we provide super price for you and policy, so pls contact us if interest !
Customers Feedbacks
Applications Of 12V Lithium Battery
Packaging & Shipping
FAQ:
Q: Are your a factory or trading company?
A: We are manufacturer, our own factory with automatic equipment and brand. We provide all kinds of OEM/ODM services for clients around the globe!
Q: Where are your company's major markets?
A: Our company focuses on high-quality lithium batteries, targeting North America, Europe, markets.
Q: Are all the batteries Grade A?
A: Of course, Brand A and never been used.
Q: Can you test each battery PRIOR to shipping?
A: MANLY Battery factory will test all the battery Voltage and Internal resistance capacity 100% before delivery.
Q： What about the lead time?
A: Samples in 20~25days, 10-15 days for the bulk order.
Q: Do you offer guarantee for the products?
A: Yes, we offer a three-five year warranty to the Li-ion battery products.
Q: How to deal with the faulty?
A: Firstly, our batteries are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low, can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.
Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 5000 cycles and warranty 5 Years, only energy storage usage.
Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit , the standard warranty is 2Y.
