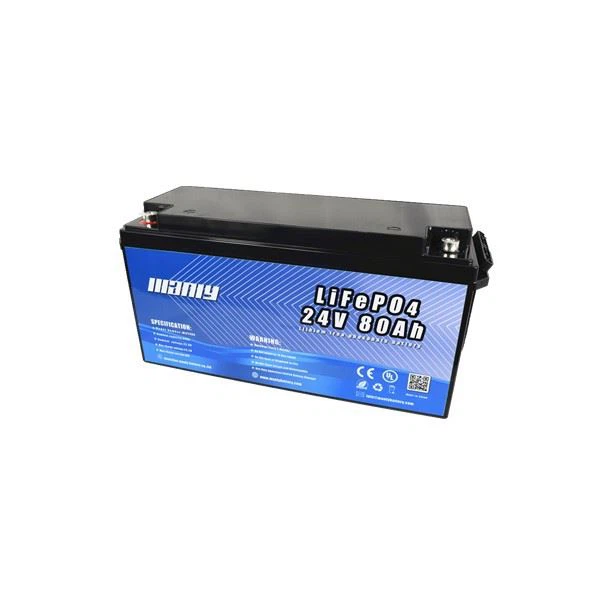

Batteries For PV Systems

OEM Acceptable 24V 80AH LiFePo4 Batteries for PV Systems, factory brand-new A product LiFePO4 battery cells, long cycle life, multi-layer high-temperature diaphragm, high energy density, safe explosion-proof, don not give rise to burning or exploding when being punctured in the nail penetration test, equiped with first-rate BMS, the battery went well in the short-circuit test, discharge test and the charge test as well, the battery capacity and dimension can customize according to your request: We have the ability to provide a vertical supply chain, from single cells to pack/module and to a complete power solution with BMS.

Description

Features

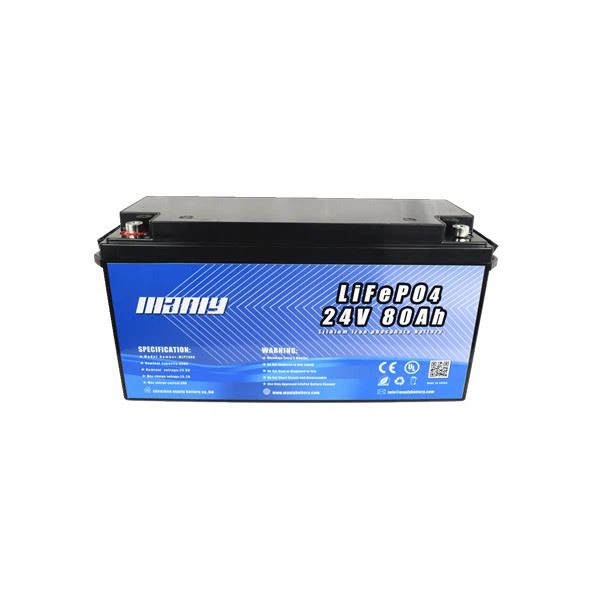

OEM Acceptable 24V 80AH LiFePo4 Batteries for PV Systems

1. Number of cycles 3,500+

2. 40% Reduction in weight

3. Operating temperature is between -20℃ and +70℃

4. Smarter protection

5. Customizable industrial grade waterproof housing

6. BMS intelligent protection

7. Customizable built-in Bluetooth monitor

Specifications

ItemOEM Acceptable 24V 80AH LiFePo4 Batteries for PV Systems
Model No.MLP2480A
Nominal voltage/capacity24V/80Ah
Charging voltage29.2V
Charge current50A
Continuous discharge current80A
Peak discharge current160A(≤3s)
Discharge cut-off voltage20
Battery size200*120*75mm/Customize
Battery weightAbout 18.8kg
Charging temperature0℃ ~ 45℃
Discharge temperature-20℃ ~ 65℃
Storage temperature-20℃ ~ 45℃
Battery casingABS/Metal/PVC/Optional

BMS protection

Short-circuit protection, over-shoot protection, over-discharge protection, over-current protection, over-temperature protection

Customized service

Our lithium battery voltage range from 3.2V/12V/24V/48V/51.2V/60/72V is optional, capacity can be customized, ABS waterproof shell and Metal shell are optional, others like size and shape can be customized according to requirements, please don't hesitate to share your detailed requirement to our online service or sales@manlybatteries.com!

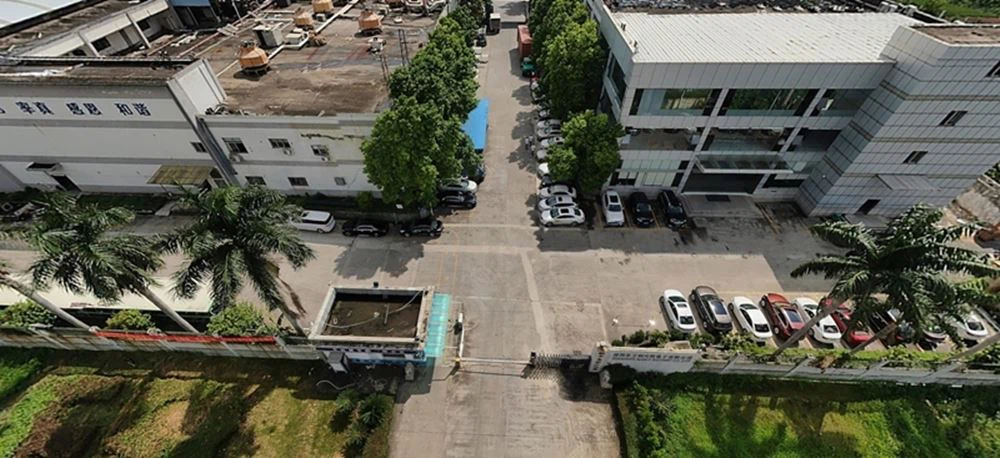

MANLY Battery Factory Overview

Electric Battery for Scooter 1

36V Lithium Scooter Battery 5

Why Choose MANLY Battery?

1. Product size can be customized according to requirements, voltage 3.2V/12V/24V/48V/51.2V/60V/72V/optional, capacity size can be customized, ABS waterproof shell is optional

2. A variety of uses to choose from outdoor energy storage batteries, batteries for PV systems and etc.

3. Imported BMS chip protection system

4. Longer life, 3,500 complete charge/discharge cycles, capacity not less than 80% of the initial

5. After-sales service for 36 months

6. The strict quality inspection process

The Customer Feedbacks

12V 7Ah LiFePo4 Battery

More Applications of the LiFePO4 Battery

Lithium Marine Batteries

FAQ

Q1: What kind of batteries does your company make and can you customize lithium batteries on request?

A1: Our products include our own lithium battery cells (including Li-ion and LiFePO4), as well as battery packs assembled from the corresponding cells, with voltages in the range of 3.2V-72V and capacities up to 300Ah, which can be customized according to customers' specific needs.

Q2:  is the scale of your production?

A2: We have 3 production bases, covering an area of 120 k㎡, including a cell production industrial park, fully automated production equipment configuration, 12 battery pack assembly lines, with a daily capacity of 1,200,000 cells, and 3,000 battery packs.

Q3: How to guarantee the quality and safety of batteries

A3: First of all, our products are positioned in the middle and high end, we only apply brand new cells, combined with super 12 years of experience in customization to give me a suitable solution for customer applications, strict quality inspection process, and our lithium batteries have purchased insurance.

Q4: How do you handle after-sales service?

A4: Our product's after-sales service time is 36 months, within 1 year can be replaced / warranty, 1 year to 2 years warranty, more than 2 years need to charge the basic maintenance materials and labor costs, the processing time of after-sales products generally in 5 working days time.

Q5: Can I return the sample fee afterward?

A5: As long as the cumulative purchase quantity reaches the standard on time, all can be refunded or discounted in the large goods sample fee, the specific need to negotiate according to the actual case.

Q6: Is your product certification complete?

A6: We have CE/FCC/ROHS/MSDS certificates for regular products, and we can apply for corresponding certificates for custom products according to customers' requirements.

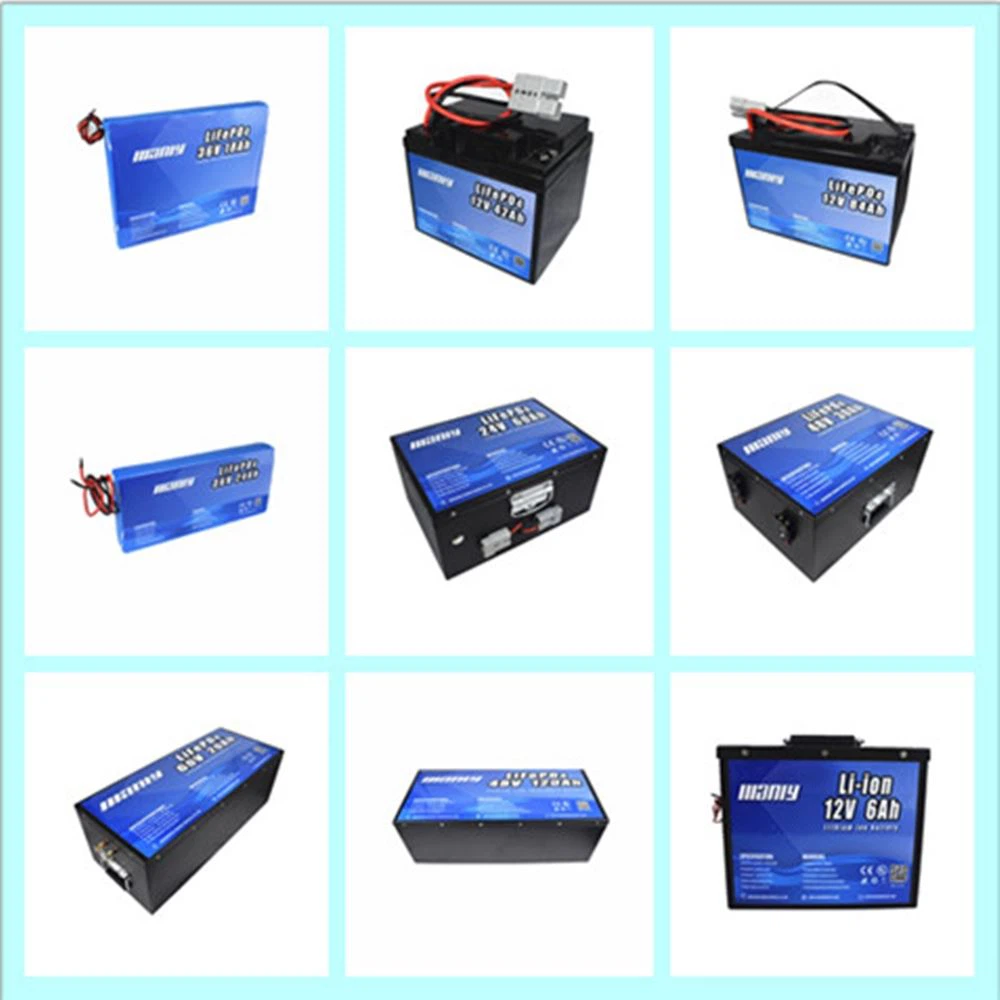

More Lithium Battery Products

200 Amp Hour Lithium Battery

OEM and ODM orders are welcome, please kindly send us your detailed requirements(Application, Voltage, Capacity, Current and etc.) to our online customer service or send us an email at sales@manlybatteries.com, we will make your ideas into reality.
