Features

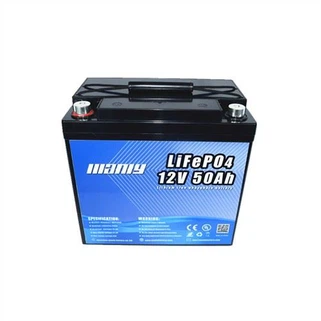

Lithium Iron Phosphate Solar Battery 12.8Ah Lithium Battery 12V 50Ah/80Ah/100Ah/150Ah/200Ah
1. Support multi-series and multi-parallel (4S4P)
2. Long cycle life
3. Lightweight battery
4. High performance
5. Green and environmental protection
6. Support Bluetooth (mobile phone APP), RS-485 communication optional
Specifications
| Item Name | Lithium Iron Phosphate Solar Battery 12.8Ah Lithium Battery 12V 50Ah/80Ah/100Ah/150Ah/200Ah |
| Brand | MANLY/OEM |
| Model | MLP12100A |
| Nominal voltage | 12.8V |
| Nominal capacity | 100Ah |
| Power | 1280Wh |
| Internal resistance | ≤20mΩ |
| Cycle life | >2000 cycles @1C 80%DOD |
| Charging efficiency | 100% @0.5C |
| Discharge efficiency | 96~99% @1C |
| Standard charging | charging voltage 14.6±0.2V |
| Charging method | CC/CV |
| Charging current | 50A |
| Maximum charging current | 100A |
| Charging limit voltage | 14.6V±0.2V |
| Continuous current | 100A |
| Maximum pulse current | 120A (<3s) |
| Discharge cut-off voltage | 10.0V |
| Charging temperature | 0~45 ℃ |
| Discharge temperature | -20~ 60 ℃ |
| Storage temperature | 0~40 ℃ |
| Humidity | 60±25% |
| Waterproof grade | IP65 |
| Plastic shell | ABS |
| Size | 342*173*212mm (13.465"*6.811"*8.346") |
| Weight | Around 13.6kg (29.983lbs) |
For other models or customizations, you can contact online customer service or send an email to sales@manlybatteries.com! Voltage capacity specifications and plugs can be customized on demand

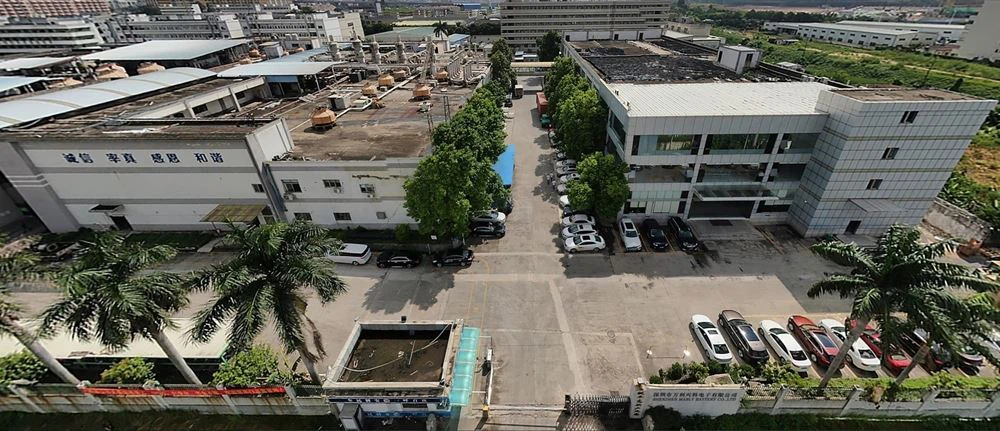

MANLY Battery Factory Overview
Why Choose MANLY Battery?
1. Rich experience, many years of experience in the lithium battery industry, strict selection of good products for you
2. Short delivery time, physical factory, sufficient supply in stock
3. Sufficient capacity, reject false bids, guarantee sufficient capacity
4. Can be customized, can be customized according to customer requirements
5. Quality assurance, from parts to finished products, strictly control each process
6. Good service, quick response to customer questions, and solutions
The Customers Feedbacks
Applications of the 12.8V Lithium Battery
Home energy storage, energy storage power stations, low-speed electric vehicles, RVs, special vehicles, testing equipment, security monitoring equipment, surveying equipment, medical equipment, etc.
Packing & Shipping
The factory's current standard package, the customized print logo shall comply with the buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
FAQ
Q1: Where is your factory located? How can I visit there?
A1: Our factory is located in Shenzhen, China. You can fly to Shenzhen directly, and we will pick you up. Welcome to visit our factory.
Q2: Is this battery compatible with my own batteries?
A2: Hello, we do not recommend connecting batteries of different brands since the BMS is different from the battery to the battery.
Q3: Can l just try samples for the first order?
A3: The trial order is acceptable. If you need samples, please contact our customer service for details.
Q4: Can you produce the order with the customer's brand?
A4: Yes, of course. OEM & ODM service is warmly provided.
Q5: What about the lead time for MANLY's battery production?
A5: Sample needs 20 ~ 25 working days if it is a custom one, mass production time needs 15 ~ 20 days after the samples test and confirm.
Q6: What about the payment?
A6: We accept T/T for the large quantities order, and Credit Card and E-checking will be accepted for the small quantities order of battery.
Q7: Which certificates do you have?
A7: Most of our lithium battery products have UL/CE/FCC/ROHS/UN38.3/MSDS etc.

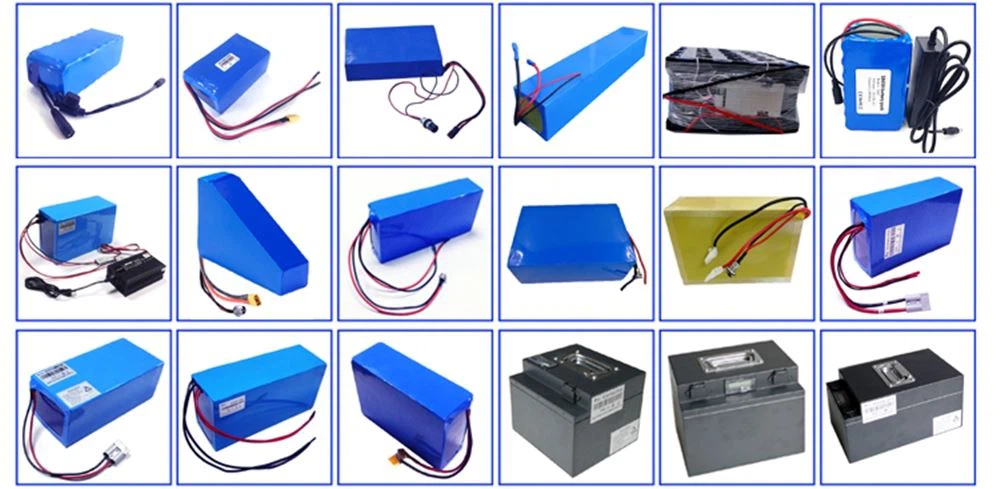

More Lithium Battery Products
