Features

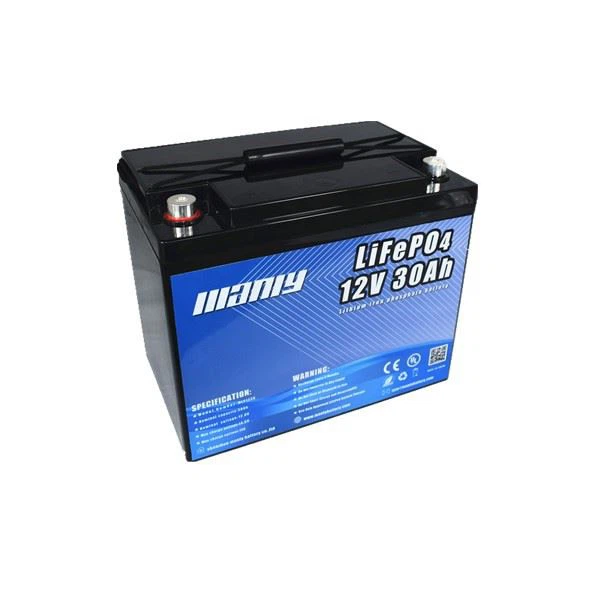

OEM Deep Cycle Rechargeable 12V 30Ah LiFePO4 Battery
1. Deep cycle series LiFePO4 battery
2. Lower self-discharge
3. Small size & Light Weight
4. ZERO maintenance fit and forget technology
5. High Discharge rates performance
6. OEM/ODM Service(Logo, Label, Material, Color, Size, and other requirements can be customized!)
Specifications
OEM Deep Cycle Rechargeable 12V 30Ah LiFePO4 Battery | |||
| Brand | MANLY/OEM | Part No. | MLP1230 |
Electric Characteristics | |||
Rated Capacity | 30Ah | Energy | 384Wh |
Nominal Voltage | 12V | Specific Energy | 102.4Wh/kg |
Internal Resistance | ≤50mΩ | Cycle Life | 2000+ |
Charging and Discharging Parameters | |||
Charge cut-off volt | 14.6V | Discharge cut-off volt | 10V |
Maximum Charge current | 30A | Maximum Discharge current | 30A |
Peak Discharge current | 14.6V | Suggested charge Volt | 14.6V |
Operation Temperature Parameters | Storage Temperature Parameters | ||
Charge | 0~45℃ | Less than a year | 0~25℃ |
Discharge | -20~60℃ | Less than three months | -10~35℃ |
Recommended | 18~28℃ | ||
Mechanical Properties | |||
Dimension Length | 165mm | Housing materials | ABS |
Dimension Width | 125mm | Terminal size | M6/M8 optional |
Dimension Height | 175mm | Cell model | 3.2v 6ah |
Weight | About 6.5kg | Configuration | 4S5P |
BMS function | |||
Protect battery from Overcharge, Over-discharge, Over-current, Short circuit | |||
Advantage | |||
High safety | Lightweight | High energy density | Long lifespan |
Environmentally friendly | Waterproof | No memory effect | Easy maintenance |
OME/ODM is welcome
Different capacity is available, contact us at sales@manlybatteries.com for more details
MANLY Battery Factory Overview
Why Choose MANLY Battery?
1. MANLY Battery is one of the largest battery manufacturing centers in China
2. MANLY Battery is a professional LiFePo4 battery manufacturer since 2009, focusing on alternative smart energy storage applications. From Cells, BMS, module, and integrated system solutions.
3. MANLY Battery factory covers an area of more than 120,000 square meters and now has more than 20 advanced battery production lines in China. The monthly output is 1.2 million.
4. MANLY Battery can produce and process lithium batteries, mercury-free alkaline batteries, and high-energy carbon batteries, our products are widely used in RV/Golf Cart/Yacht/Marine/Backup/Solar, etc.
The Customers Feedbacks
Applications of the 12V 30Ah LiFePO4 Battery
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Certifications
Packing & Delivery
Factory standard packing or customized
FAQ
Q1: How can you guarantee your quality?
A1: Firstly, we will send you a sample to confirm everything first, but free samples are usually not for you at the beginning, hope you can understand. Secondly, We will make the mass order exactly the same with the confirmed samples as your request.
Q2: Can I have a 12V 30Ah LiFePo4 Battery sample order?
A2: Yes, we welcome sample orders to test and check quality.
Q3: Do you accept OEM/ODM?
A3: Of course, we accept OEM/ODM customize.
Q4: When will you ship the order?
A4: Normally 15~25 working days after receiving your payments, but it can be negotiated based on order QTY and production schedule.
Q5: Which market have you already exported to?
A5: We already ship to Europe, Asia, Africa, the Middle East, South America, etc.
More Lithium Battery Models
We can customize the different lithium batteries for you, send an inquiry with your detailed information at sales@manlybatteries.com now!
