Features

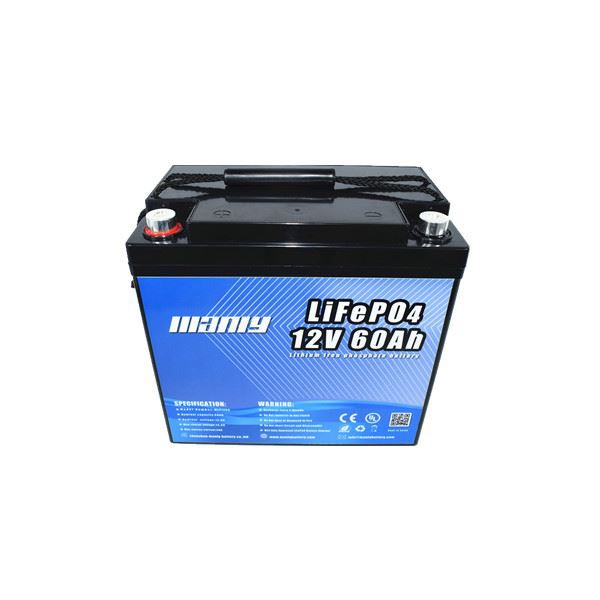

High-quality Rechargeable Energy Storage Deep Cycle 4S 12V 60Ah LiFePO4 Battery Pack
1. Deep cycle long life
2. High discharge performance
3. Easy installation and handling
4. Heavy-duty Long Cycle Life@1C
5. Lightweight & Compact design
6. Maintenance-free
7. Smart elite BMS, super safety design
8. Wider temperature range from -20℃~+65℃
9. With the same size of SLA batteries standard model
Parameters
Item Name | High-quality Rechargeable Energy Storage Deep Cycle 4S 12V 60Ah LiFePO4 Battery Pack | ||
Brand | MANLY/OEM | ||
Part No. | MLP1260A | ||
Basic Characteristic | |||
Battery size | 260*165*215mm | Adjustable | |
Battery weight | Around 7kg | ||
Working Temperature | Charge Temperature | 0℃ - 45℃ | |
Discharge Temperature | -20℃ - 75℃ | ||
Technical Data | |||
Rated Voltage | 12.8V | 3.2V to 72V | |
Charge & Discharge | Charge method | CC/CV | Confirmed |
Standard Charge Current | 10-20A | Adjustable | |
Max Charge Current | 60A | Adjustable | |
Max Charge Voltage | 14.6V | Confirmed | |
Standard discharge current | 10-30A | Adjustable | |
Continuous Discharge Current | 60A | Adjustable | |
Peak Discharge Current | 100A | Adjustable | |
Discharge cut-off | 10V | Confirmed | |
With BMS, with LED indicator, Sealed ABS case with handle | |||
Design | |||
Smart function:RS485/RS232/Can Bus/Bluetooth/self-heating | |||
Other customize service | |||
If there are any other special requirements, contact us for confirmation. |
Customization Services
We do custom batteries according to your request.
Voltage from 3.2v to 48v
Capacity from 600mah to 150ah
Discharge rate: normal, 2C,3C,5C,10C,20C, etc.
We can customize the battery for you, send an inquiry with the below information now!
Battery information Appliance information
Size Appliance name
Capacity Normal working current
Cable length Peak current
Connector Working voltage range
MANLY Battery Factory Overview
Why Choose MANLY Battery?
1. MANLY Battery has been engaged in the lithium battery production industry for more than 12 years, and sales of various types of lithium battery products.
2. MANLY Battery has a total span of 120,000 square meters, our daily production can exceed 1,200,000 per for battery cells and 3,000 per for battery pack assembly.
3. MANLY Battery promises to provide high-quality battery products with our professional R&D team, experienced workers, and advanced automatic equipment.
4. MANLY Battery has very stable quality, we have many projects around the world, like the USA, Germany, Australia, Poland, etc. all of Our designs and processes are in line with the high-end market.
More Applications of 12V Lithium Battery
1. Electrical and hobby, electric bike, electric scooter, electric motor
2. Emergency power supply, LED light and flashlight, emergency lights, pos machine
3. Consumer applications
4. Electrical tools
5. Solar lawn, remote control
6. Electric vacuum cleaner, electric sweeper
7. Medical device, POS device
8. Backup power supply
9. High drain the small home appliance
MANLY Storage Batteries List
LiFePo4 Storage Batteries | |||||
Model | Voltage | Capacity | Dimension | Wattage | Weight |
ML-1208 | 12.8V | 8Ah | 150*65*95mm | 102Wh | 1.5kg |
ML-1210 | 12.8V | 10Ah | 150*99*95mm | 128Wh | 2.9kg |
ML-1220 | 12.8V | 20Ah | 181*77*175mm | 256Wh | 3.2kg |
ML-1230 | 12.8V | 30Ah | 223*95*175mm | 384Wh | 4.5kg |
ML-1240 | 12.8V | 40Ah | 223*106*175mm | 512Wh | 5.8kg |
ML-1250 | 12.8V | 50Ah | 223*150*175mm | 640Wh | 8.9kg |
ML-1230-1 | 12.8V | 30Ah | 197*128*200/220mm | 384Wh | 4.5kg |
ML-1250-1 | 12.8V | 50Ah | 238*133*198/222mm | 640Wh | 8.9kg |
ML-1280 | 12.8V | 80Ah | 260*175*201/221mm | 1024Wh | 13.6kg |
ML-12100 | 12.8V | 100Ah | 306*174*200/220mm | 1280Wh | 17.0kg |
ML-12120 | 12.8V | 120Ah | 355*175*180mm | 1536Wh | 19.0kg |
Package & Delivery
FAQ
Q1: Do you have the current sample in stock?
A1: Usually we don’t have, because different customers have different requests, even the voltage and capacity are the same, other parameters may be different. But we could finish your sample quickly once the order is confirmed.
Q2: What’s the delivery time for mass production?
A2: Usually 20-25 working days, it depends on the quantity, material, BMS/PCM, and so on, we suggest checking delivery time case by case.
Q3: What kind of certificates could you provide for the battery?
A3: It’s a custom-making design, no current certificate, but we could apply CE, UL, UN38.3, and other related certificates for you, but the certificate fee needs to be paid by you first, if your quantity is big enough, certificates fee could be refunded.
Q4: Do you offer a charger for the battery?
A4: Yes, we do. If you also need a charger, please mention it when sending an inquiry, kindly note that our charger cost is not included in the battery cost.
Q5: Are you a manufacturer or simply a trading company?
A5: We are a manufacturer, and we sincerely welcome you to visit our factory and guide our work!
Q6: Could you deliver the goods to our country?
A6: Yes, please see the chart below.
Oceania | Europe | Asia | ||
Australia | Germany | Czech Republic | Armenia | Thailand |
Zealand | United Kingdom | Bulgaria | Azerbaijan | Indonesia |
France | Estonia | Georgia | Myanmar | |
North America | Italy | Greece | Kazakhstan | Malaysia |
Canada | Spain | Norway | Uzbekistan | Philippines |
Mexico | Poland | Romania | Kyrgyzstan | India |
United States | Hungary | Slovenia | Tajikistan | United Arab Emirates |
Belgium | Slovakia | Turkmenistan | Saudi Arabia | |
South America | Luxembourg | Croatia | Hongkong | Kuwait |
Chile | Denmark | Latvia | Japan | Bahrain |
Netherlands | Russia | South Korea | Oman | |
Africa | Austria | Ukraine | Taiwan | Jordan |
Kenya | Finland | Lithuania | Macau | Qatar |
Tanzania | Ireland | Moldova | Vietnam | Singapore |
Nigeria | Portugal | Sweden | ||
South Africa |
