Features
Factory Customization 12V 75Ah Replace GEL Battery
Original qualified battery cell
Good Safety Performance
Good Cycle Life Time
IP65 surface waterproof
Eco-friendly and qualified
Parameters
| Item Name | Factory Customization 12V 75Ah Replace GEL Battery | |
| Brand Name | MANLY/OEM | |
| Model Number | MLP1275A | |
Electrical Characteristics | Battery pack Nominal Voltage | 12.8V |
Battery pack Nominal capacity | 75Ah | |
Battery pack Energy | 960Wh | |
Internal Resistance | ≤30mΩ | |
Battery pack Cycle life | ≥3,500 cycles @1C 100%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 14.6±0.2V |
LiFePO4 Battery Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) | |
Battery pack standard Charger Current | 37.5A | |
Battery pack charging time | about 3h | |
Charge Cut-off voltage | 10V±0.2V | |
Standard Discharge | Max Continuous discharge Current | 75A |
Peak discharge current | 150A | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 25℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP65 | |
Mechanical | Cell & Method | 4S1P |
Plastic Case | ABS | |
Dimensions (mm) | 260*170*220mm/Customizable | |
Weight | About 9.5KG | |
Color | Black, can customize to other colors | |
Applications
1. Large-scale electric vehicles: buses, electric vehicles, tourist attractions, and hybrid vehicles, etc.;
2. Light electric vehicles: electric bicycles, golf carts, small flat battery carts, forklifts, cleaning vehicles, electric wheelchairs, etc.;
3. Energy storage equipment for solar and wind power generation;
4. UPS backup power supply and emergency lights, warning lights, and miner's lamps (good safety);
5. Back-up power supplies for small electronic instruments and portable instruments, etc.
Why Choose MANLY Battery?
MANLY has 12+ years focus on lithium battery R&D and production with more than 2,000 employees and a strong R&D team
MANLY has 12+ years of continuous exploration, only to strive for better product quality and service
MANLY has a complete management system and production organization
MANLY has a daily production capacity of more than 3,000 pieces
MANLY has UN, PSE, ISO 9001, CE, ROHS, and other certifications
Our lithium battery products are sold to more than 30 countries and regions including Europe, Japan, and the United States, and enjoy a high reputation in overseas markets

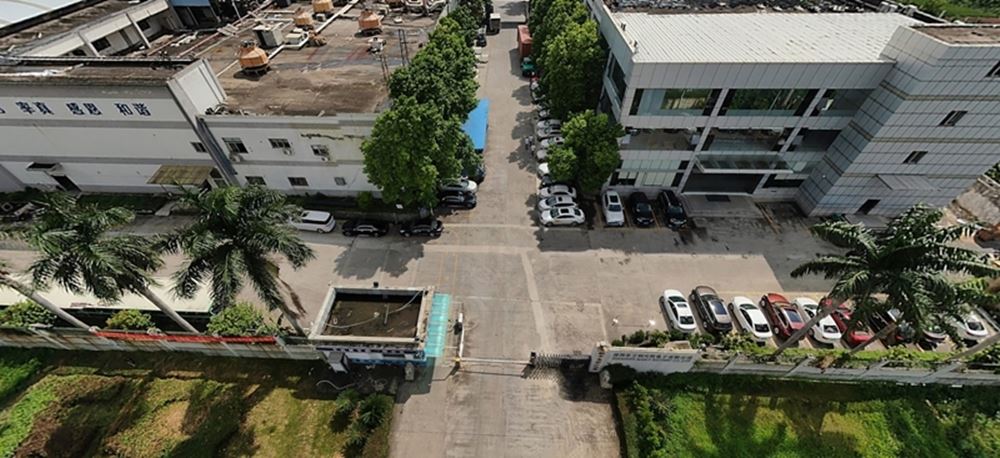

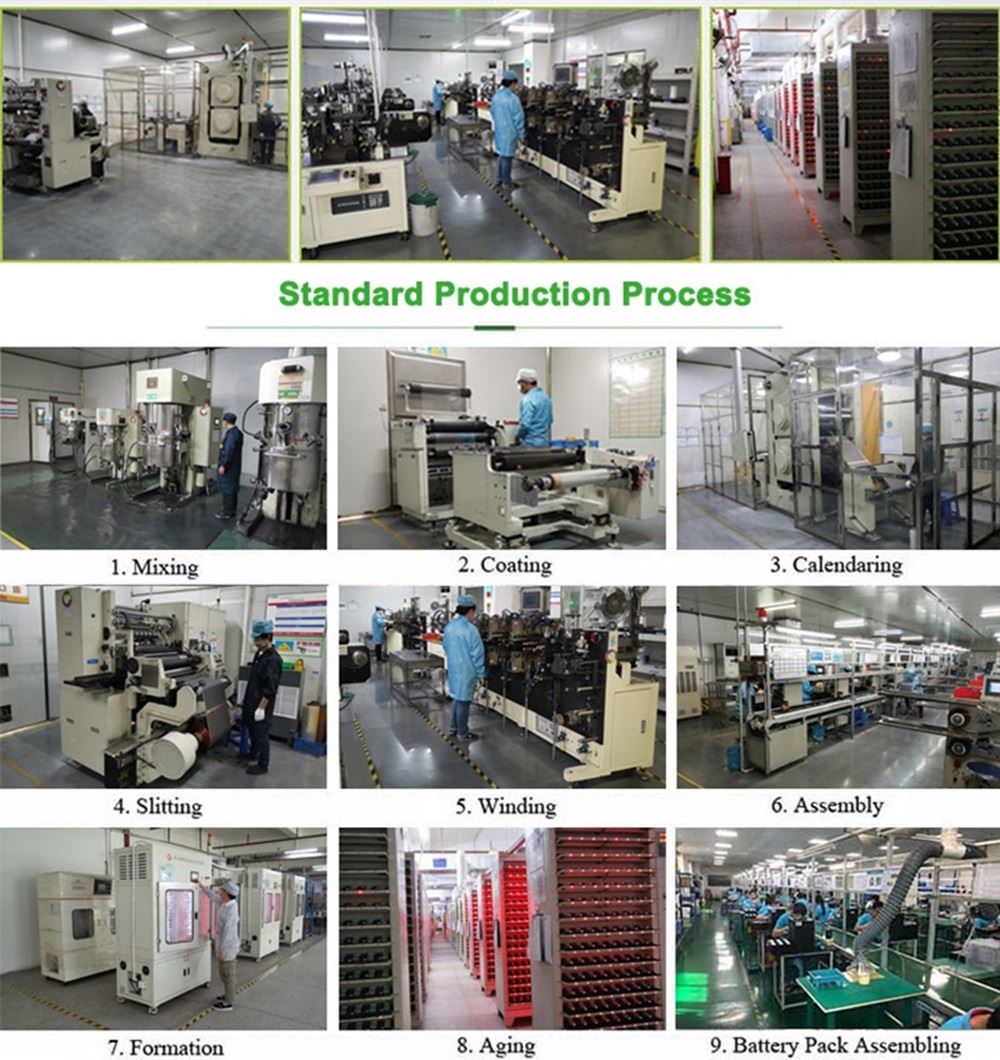

MANLY Battery Factory Overview
More Advantages of the LiFePO4 Battery
1. Shockproof: through the plastic shell shockproof structure design, meet the requirements of high safety, waterproof, and high reliability;
2. Salt spray: To achieve resistance to salt spray mold, suitable for the marine working environment.
3. The battery pack has a high cycle life, which is in line with the values of low carbon, energy-saving, and environmental protection;
Packaging & Shipping
FAQ
Q: Do you have the current sample in stock?
A: Usually we don’t have, because different customers have different requests, even the voltage and capacity are the same, other parameters may be different. But we could finish your sample quickly once the order is confirmed.
Q: How to proceed with an order?
A: 1. Firstly let us know your requirements or application.
2. Secondly, We quote according to your requirements or our suggestions.
3. Thirdly customer confirms the samples and places a deposit for the formal order.
4. Fourthly We arrange the production and then delivery.
Q: What’s the delivery time for mass production?
A: Usually 20-25 working days, it depends on the quantity, material, BMS/PCM, and so on, we suggest checking delivery time case by case.
Q: Can I print my own LOGO on the lithium battery products?
A: It is absolutely possible, but customers need to provide their LOGO design on the samples orders.
Q: How do we make the payment?
A: TT, L / C, West Union, Paypal, etc. but please do only use the official account.
Lithium Battery Manufacturer Solution Provider, for further details please do not hesitate to contact us sales@manlybatteries.com
