Features

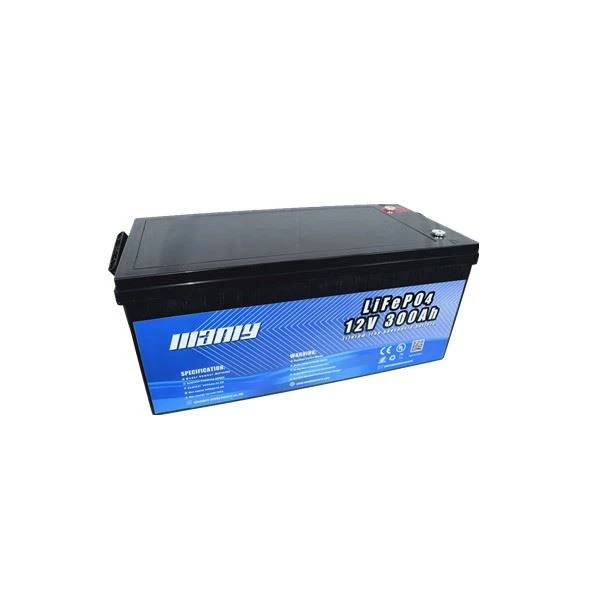

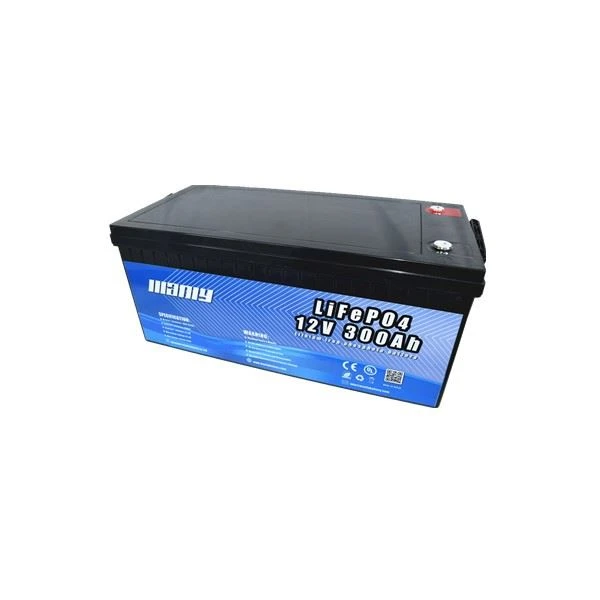

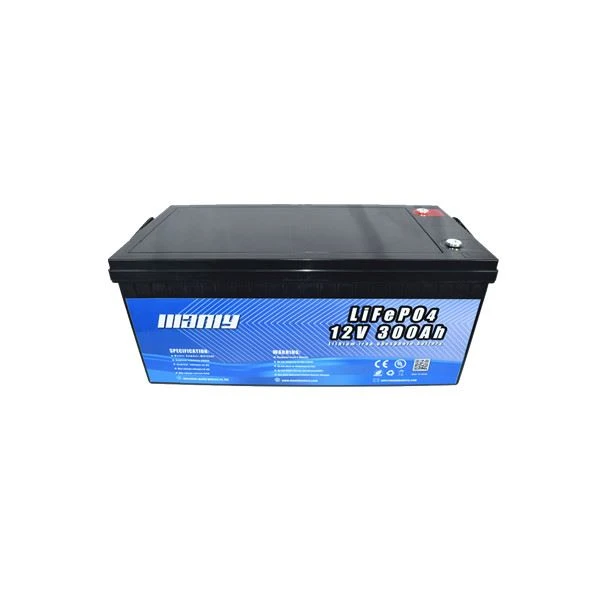

12V Caravan Leisure Battery
1. Long Cycle Life, 3,500+ Cycles. LF120A1 12V lithium battery pack is constructed from High-Quality LiFePO4 cells
2. The appearance shape, size of the product is similar to the specifications of traditional lead-acid batteries, so you can be installed directly instead of the customary lead-acid battery
3. The LiFePO4 caravan leisure battery has a higher capacity, is lighter, and much better
4. Can go up to 4 in series with this battery to get a 48V caravan leisure battery
5. Sealed LiFePO4 construction with ABS case and cover
Specifications
| Item | 12V Caravan Leisure Battery |
Part No. | ML12300 |
| Brand | MANLY |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 300Ah |
| Energy | 3840Wh |
| Dimension | 526*235*237mm/Customize |
| Weight | About 32kg |
| Working Voltage Range | 10V - 14.6V |
| Charging mode | CC-CV |
| End of Charge Voltage | 14.6V |
| Recommended Charging Current | 80A |
| Max. Charging Current | 150A |
| Recommended Max Continuous Discharging Current | 120A |
| Max. Continuous Discharging Current | 150A (Less than 25 mins) |
| Peak Discharging Current | 200A(≤5s) |
| BMS (Battery Management System) | In-built the battery |
| Monitoring | LCD Display/Optional |
| Application / Interconnection | Parallel Connection |
| Charging Temperature | 0℃～45℃ |
| Discharging Temperature Range | -20℃~60℃ |
| Storage Temperature Range | -20~60℃ |
| Life Time | 10 - 15 years |
| Protection Class | IP65 |
Applications
1. Electric Propelling Applications
Golf troller Battery, E-bike Battery, Scooter Battery, RV Battery, AGV Battery, Marine Battery, Tourist car, Caravan Leisure Battery, Wheelchair Battery, E-sweeper Battery, Floor cleaner Battery, E-walker Battery, etc.
Intellectual Robots Battery
Power tools: electric drills Battery, toys Battery
2. Energy Storage
Solar-Wind Power System Battery
City Grid (On/Off) Battery
3. Back-up System and UPS
Telcom Base Battery, CATV/CCTV system Battery, Computer Server Center Battery, Medical Instruments Battery, Military Equipment Battery and etc.
Why Choose MANLY?
1. Production System: 2000+ employees, high-quality equipment imported from Japan, South Korea, and the US creates an automatic production line
2. Perfect Accessories: If you plan to assemble the battery packs by yourself, no need to worry about not finding suitable accessories, we have prepared all for you, such as busbars, screws, and etc.
3. Good Reputation: With over 12 years of history in the lithium industry
4. After-sales service: Quality assurance, 24h to solve your problems, provide solutions and technical support
FAQ
Q: OEM/ODM accepted?
A: Of course, we support OEM&ODM services, Logo on the battery outside is available.
Q: Do your batteries have certifications?
A: Yes, most of our products are approved by the certificates of CE, RoHS, FCC, IEC.
Q: How long is the warranty of your products?
A: Almost all our battery pack has 3 years warranty. We assure a cycle life of more than 2000times 80%DOD at 0.2C. That means you can use it for at least 5 years for a normal 1-time charge and discharge every day.
Q: Can I get samples of the 12V caravan leisure battery?
A: of course. We are honored to offer you samples but not free at the beginning
Q: How to do if any quality problems on our side in the warranty time?
A: First, take pictures or videos as proof and send them to us for inspection, we will replace new ones in your next order.
Q:How to guarantee the quality and safety of batteries
A: First of all, our products are positioned in the middle and high end, we only apply brand new cells, combined with super 12 years of experience in customization to give me a suitable solution for customer applications, strict quality inspection process, and our lithium batteries have purchased insurance.
