Features

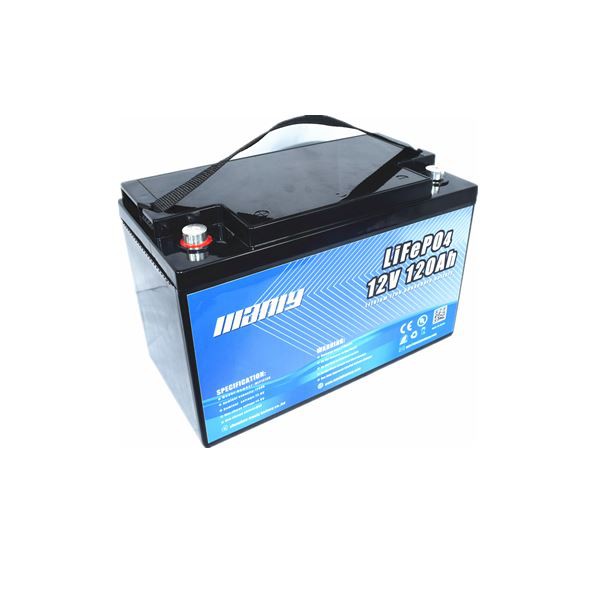

Deep Cycle 12V Lithium E Rickshaw Battery 120Ah
1. Built-in automatic protection for over-charge, over-discharge, over-current, and over-temperature
2. Thousands of cycles, 100%DOD, under normal conditions
3. 70% lighter than lead-acid batteries
4. Drop-in replacement for lead-acid batteries (plug and play)
5. Support for Series application expansion (up to 51.2V) and two in parallels
Parameters
| Item Name | Deep Cycle 12V Lithium E Rickshaw Battery 120Ah |
| Brand | MANLY/OEM |
| Model Number | MLP12120 |
| Nominal voltage | 12.8V |
| Nominal capacity | 120A (Support customize) |
| Battery type | LiFePO4 Cylinder/Prismatic |
| End of charge voltage | 14.6V |
| End of discharge voltage | 10V |
| Charge method | CC/CV(Constant current/constant voltage) |
| Max continuous charge current | 60A ( Suggestion) |
| Continuous discharge current | 60A |
| Max pulse discharge current | 300A/1S |
| Net weight | Customized |
| Case material | ABS case or metal case or stainless steel case |
| Case dimension | Customized |
| Warranty | 3+ years |
| Terminal Type | M8/M6 or Anderson |
| Lifecycle | Deep cycle life 2000+ times, 80% DOD |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Storage temperature | -10~45℃ |
| Enclosure Protection | IP65 or customized IP67 available |
| Sticker | OEM sticker welcome, you can sent design for customization |
Applications
Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheelchair, E-truck, E-sweeper, Floor cleaner, E-walker, 48 Volt E Rickshaw Battery, etc.
MANLY'S Advantages
1. More than 12 years of experience in producing battery products for various applications.
2. Original factory quality and long-term cooperation to reach a win-win relationship
3. Offer the battery solution for customized application
4. Competitive price with excellent quality
5. Customers' Feedback
6. MANLY factory
Why Choose MANLY'S LiFePO4 Batteries?
1. MANLY's LiFePO4 batteries provide more Wh/Kg while also being between 1/2 and 1/3 the weight of its SLA equivalent
2. MANLY's LiFePO4 batteries did not give rise to burning or exploding when being punctured in the nail penetration test
3. MANLY's LiFePO4 batteries come with the Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
4. MANLY'S 6V, 12V series batteries, support 4 pcs connect in series to higher voltage applications
FAQ
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen, China. You can fly to Shenzhen directly, and we will pick you up. Welcome to visit our factory.
Q: Is this battery compatible with my own e rickshaw battery 120Ah?
A: Hello, we do not recommend connecting batteries of different brands since the BMS is different from the battery to the battery.
Q: Can we put different LiFePO4 battery pack in series by ourself?
A: Why not use the bigger voltage directly? We usually suggest do not make the batteries in series by yourself if you do not have experience, this will hurt the cycle life of the pack.
Q: Can we get free samples for the test?
A: Yes, but free samples are not available at the beginning.
Q: Do you offer OEM or ODM service?
A: Yes, OEM&ODM are welcome. Please inform us of your OEM requirements and confirm the design, We'll process it accordingly.
