Features

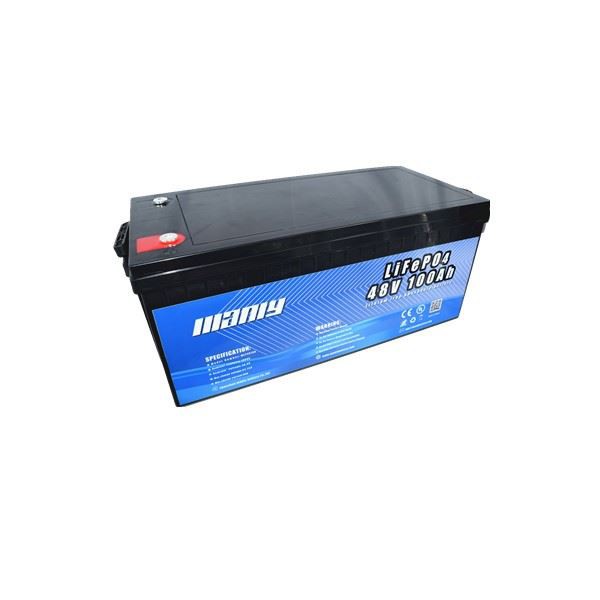

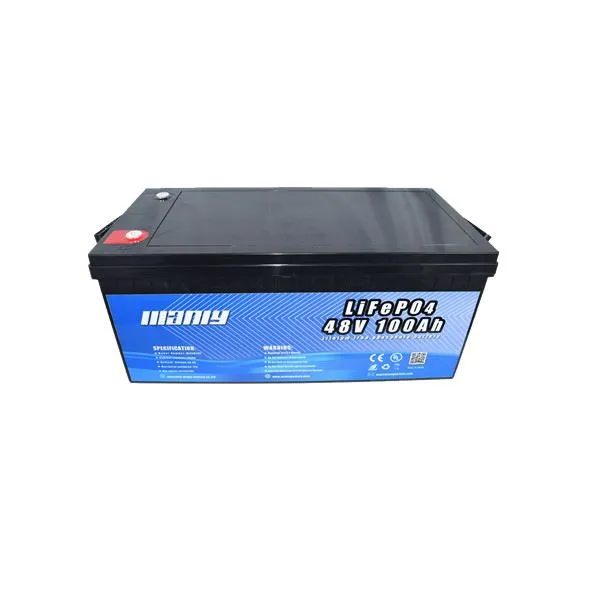

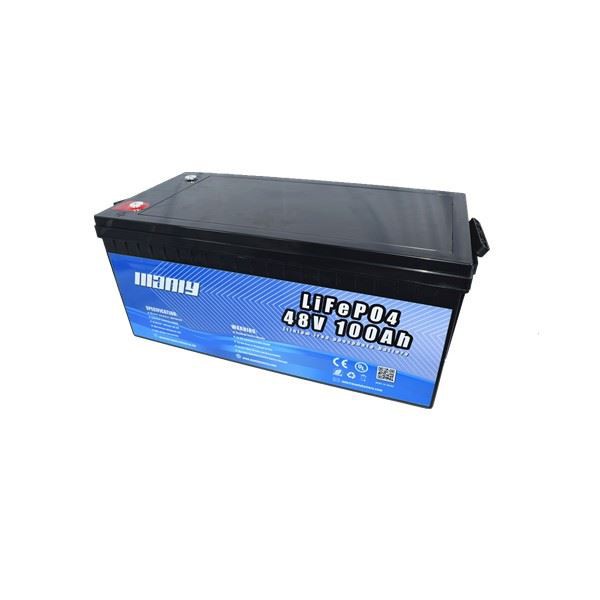

Battery For All-terrain Smart Agricultural Composite Robot
1.Battery Management Systems (BMS) with power terminal cut-off and recovery
2.Cell balancing and low voltage/over voltage protection, short-circuit protection
3.Bluetooth technology to monitor battery status is optional
4.Maximize your energy potential with 99% Depth of Discharge (DOD)
Parameters
| Battery item | Battery For All-terrain Smart Agricultural Composite Robot |
| Brand name | MANLY |
| Model No. | MLP48100A |
| Electric Characteristics | |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Minimum Capacity | 100AH |
| Energy | 5120Wh |
| Internal Resistance | ≤5mΩ |
| Charge Cut-off Voltage | 58.4±0.2V |
| Discharge Cut-off Voltage | 40.0V |
| Charging and Discharging Parameters | |
| Continuous Discharge Current | 80A |
| Discharge Peak Current | 115A(Could be customized) |
| Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity. |
| Charge style | CC/CV |
| Weight/size | Customized |
| Charge Temperature Range | 0℃~45℃ |
| Discharge Temperature Range | -20~60℃ |
| Recommended | 18~28℃ |
| Service | OEM/ODM |
| Water Dust Resistance | IP56 |
| Communication | Customized |
| Plastic Case | ABS |
Let us know your request and we will handle the rest for you: Customize for particular usage and realize the particular function.
MANLY Battery Factory Overview
Why Choose MANLY Battery?
1.Customer satisfaction
2.Factory direct sales
3.Quality assurance
4.An adequate supply of goods
Customers Feedbacks
Applications Of 48V Lithium Battery
Packaging & Shipping
FAQ
Q1: Can you do OEM?
A: Yes, we can.
Q2: Do you have a current sample in stock?
A: Usually we don’t have, because different customers have different requests, even the voltage and capacity are the same, other parameters may be different. But we could finish your sample quickly once the order is confirmed.
Q3. What about the lead time?
Sample needs 15 days, mass production time needs 5-7 weeks, and it depends on order quantity.
Q4. Does Guangxi Aerospace Beidou support door-to-door shipping?
A: Yes. If the battery unit weight is below 30kg, we deliver it via Air Express. If battery unit weight is above 30kg, we deliver it via sea. If you want us to help you to make customs clearance, we would like to do that.
