Features

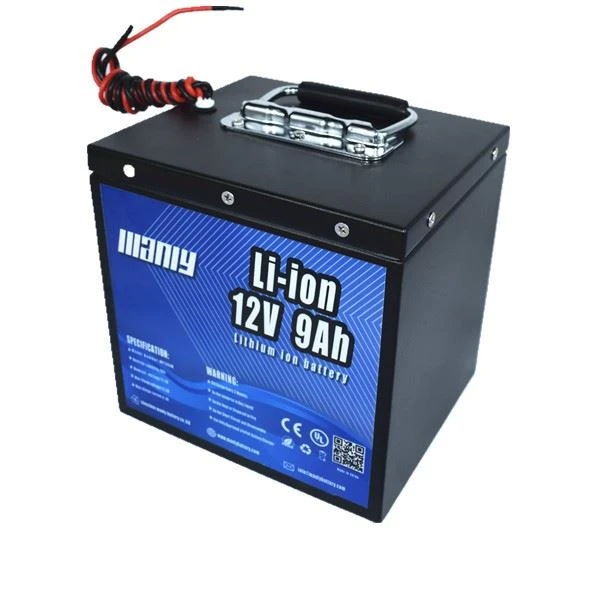

Smart Battery 12V 9Ah
98% energy efficiency
High safety with advanced Built-in Battery Management System
Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc.
100% Maintenance free
Specification:
| Battery item | Smart Battery 12V 9Ah |
| Brand name | MANLY |
| Electric Characteristics | |
| Model No | MLP1209A |
| Nominal Voltage | 12V |
| Nominal Capacity | 9AH |
| Charge Cut-off Voltage | 14.6V±0.2V |
| Charging and Discharging Parameters | |
| Discharge Cut-off Voltage | 10V |
| Continuous charge Current | 3A |
| Discharge Peak Current | 9A |
| Fast Charge Current | 1C |
| Cycle Life | ≥ 2000 cycles, DOD 100% |
| Size | Customized |
| Operation Temperature Parameters | |
| Charge Temperature Range | 0°C – 45°C |
| Discharge Temperature Range | -20°C – 60°C |
| BMS Protection | Include |
| Parallel Support | Yes |
| Series Support | Yes |
| Case material | ABS or metal case or stainless steel case(customizable) |
| Terminal Type | 8 /Anderson interface / Positive and negative screw terminals (customizable) |
Remark: Our products are customized, so the main data can be changed by customer’s requirements.
MANLY Battery Factory Overview
Why Choose MANLY Battery?
1.We have the first-class R&D team ,some of whom from the international battery conglomerate with rich experience in battery design, production,testing as well as practical project operation and maintenance .
2.ODM OEM is acceptable.
3.24 hours /6 days/week online service.
4.With 36months warranty.
Customers Feedbacks
Applications Of 12V Lithium Battery
Packaging & Shipping
FAQ
Q：What certification d you have for your battery packs?
A：Now we have CE,MSDS,ROHS and UN38.3 certification. Next, we plan to make German VDE certification, North American UL certification and Australian CEC certification.
Q：Your battery life is only 4800 cycles. Is that A Grade A battery? I've seen others have over 6000 cycles?
A：Yes,Our battery is Grade A cell,this is because the standards are different. Our 4800 cycles are measured under the condition of 0.5C charging ratio of 100%DOD,and when we use 0.25C charging ratio, our cycles can reach more than 6000+.
Q: Could you provide OEM service?
A: Yes, we could, we could also provide blister packaging if you need.
