Features

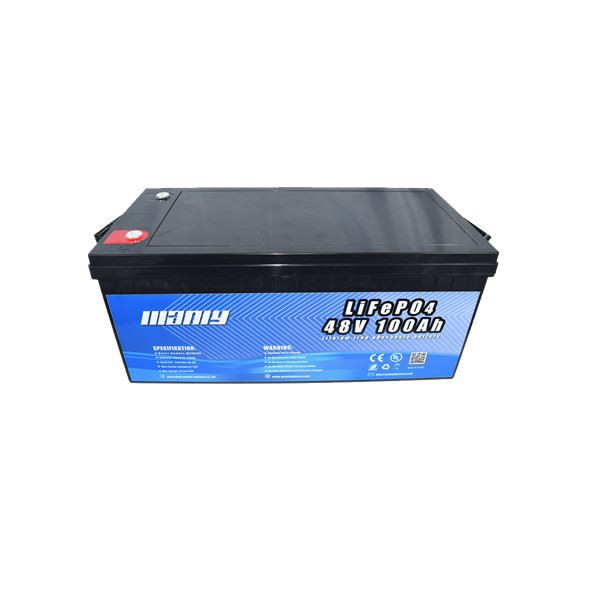

Rechargeable Sealed Deep Cycle 5kWh LiFePo4 Battery 48V 100Ah For Telecom
1. 48V 10Ah – 48V 150Ah full range is available
2. High Safety Ensured by Integrated Smart BMS built-in
3. High Energy Density by Adopting LFP Cells
4. Extendable Capacity through Parallel Connection
5. Wide Working Temperature Range (-20℃ to 60 ℃)
6. Perfectly Fits in Telecom Standard 19“ Cabinet
7. Excellent Cycle (Over 2000 cycles) and Calendar Life (Up to 10 ~15 years)
8. Visual SOC and Alarming Indication (LED or LCD optional)
9. Low Total Cost of Ownership (TCO)
10. Easy Handling and Installation
Parameters
Item | Rechargeable Sealed Deep Cycle 5kWh LiFePo4 Battery 48V 100Ah For Telecom | |
| Brand | MANLY/OEM | |
Model Number | ESS48100A | ESS48100B |
Rated Capacity | 100Ah | 100Ah |
Nominal Voltage | 51.2V/48V | 51.2V/48V |
Discharge Ending Voltage | 40V/37.5V | 40V/37.5V |
Charging Limited Voltage | 58.4V/54.75V | 58.4V/54.75V |
Max Charging Current | 50A | 50A |
Max Continuous Discharge Current | 50A | 50A |
Weight | About 50kg | About 50kg |
Display | Without a display screen | Without an LCD display screen |
Parallel | Parallel connection is optional, when paralleling, the Max charging current is 20A | |
Dimension(mm)&(inches) | 500*442*300mm&19.7*17.4*11.8in/Customzied | |
Containing Cell | 3.2V LFP battery | |
Design Life | 10 ~ 15 years | |
Cycle Life | More than 2,000 cycles | |
IP Class | IP54 | |
Outer Package Material | White bake lacquer steel case (Battery rack or cabinet is optional) | |
Operating Temperature | Charging at 0 ~ +45℃ Discharging at -20 ~ +60℃ Storage at -20 ~ +60℃ | |
OEM and ODM orders are welcome, please kindly send us your detailed requirements (Application, Voltage, Capacity, Current and etc.) and we will make your ideas into reality.
MANLY Battery Factory Overview
Why Choose MANLY Battery?
1. More than 12 years of experience in producing lithium battery cells and battery packs for various applications.
2. Nearly a total span of 120,000 square meters, modern automatic equipment production line, high productivity of around 3,000 per day lithium battery packs, and 1,200,000 per day lithium battery cells.
3. Strict quality control inspection promises high-stability lithium battery products, all of Our designs and processes are in line with the high-end market.
4. Under the terms of this warranty, if a failure occurs under normal usage within the warranty period, the MANLY Battery team will provide free maintenance or replace a new one based on the proof documents.
The Customers Feedbacks
Applications of the 48V LiFePo4 Battery
LiFePO4 Battery VS Lead-Acid Battery
Package & Delivery
1. Standard export carton packaging can also arrange packaging as the different requirements based the customers in the different country
2. If delivery through our forwarder partners, usually arrange by sea or by air, or via UPS/DHL/FedEx/TNT, the customers can also use their own forwarders, we can help to ship the goods to their warehouse
FAQ
Q: Where is the MANLY Battery factory located? Can I visit there and how to go?
A: Our factory is located in Shenzhen, China, you can fly to Shenzhen airport directly or fly to Guangzhou/Hongkong, then by highway to Shenzhen and we will pick you up, warm welcome to visit our factory and guide our works.
Q: Can we get some samples for the test first?
A: Of course, we can supply samples, but buyers need to pay for sample costs and shipping costs at the first stage, but we will return or reduce the same amount in your formal order according to our samples policy.
Q: What's the MOQ of your lithium batteries?
A: According to different voltage and capacity, samples 1 ~ 10 pcs is available, for large capacity, no limit, for small capacity, usually more than 20pcs.
Q: What about the lead time?
A: If it has the raw materials in the stock, normal samples need 15 ~20 days, if not, samples need 20~25working days; mass production will be around 10 ~ 15 working days, it depends on the lithium battery is a normal one or a custom one.
Q: What certification does your battery have?
A: Most of our lithium batteries have and can be UL/CE/REACH/RoHS/IEC62133/CB/UN38.3 approved.
Q: How can I pay for my orders of lithium battery products?
A: We accept almost all of the mode payments: Bank of T/T, Western Union, Paypal, or other ways ...
Q: What's the warranty for your lithium battery from MANLY Battery?
A: 2 years commercial warranty as standard, extendable to 5 years.
