Technical Specifications-Powerwall Series
| Model | MF5000 | MF7500 | MF10000 |
| Nominal Voltage | 51.2V (16 Series) | ||
| Capacity | 100Ah | 150Ah | 200Ah |
| Energy | 5,120Wh | 7,680Wh | 10,240Wh |
| Internal Resistance | ≤30mΩ | ||
| Cycle Life | ≥5000 cycles @ 80% DOD, 25℃( 0.5C charge and discharge) | ||
| ≥4000 cycles @ 80% DOD, 40℃( 0.5C charge and discharge) | |||
| Design Life | ≥10 years | ||
| Full Charge Voltage | 58.4V±0.5V | ||
| Max. Continuous Working Current | 100A/50A(Customized) | ||
| Discharge Cut-off Voltage | 40±0.2V | ||
| Charge Temperature | 0℃ ~ +45℃ （Under 0℃ extra heating mechanism） | ||
| Discharge Temperature | 0℃ ~ +60℃ （Under 0℃ work with reduced capacity） | ||
| Storage Temperature | -40℃ ~ +55℃ @ 60% ± 25% relative humidity | ||
| Dimension | 643*520*165mm | 700*483*165mm | 643*520*265mm |
| Weight | 52±2kg | 65±2kg | 90±2kg |

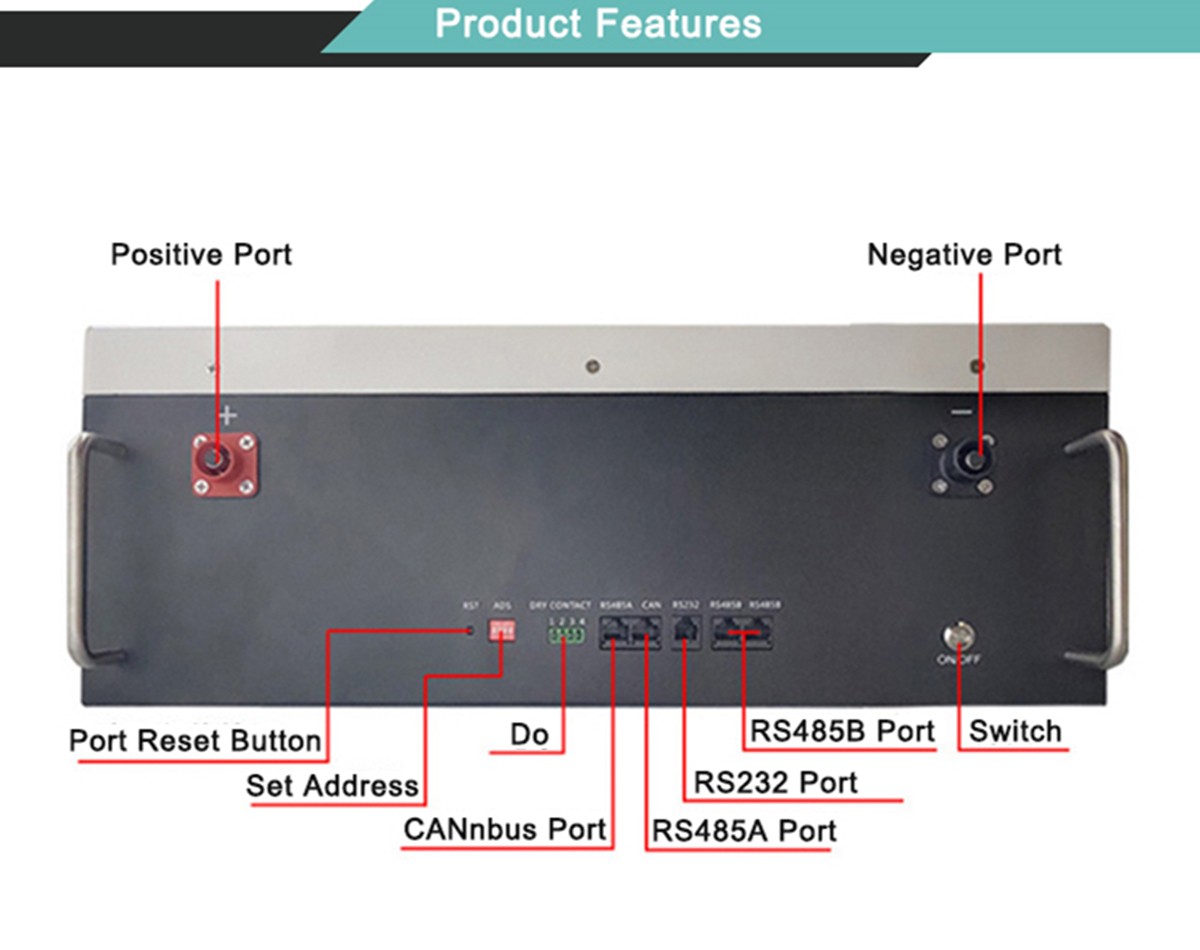

| Protocol (Optional) | RS232/RS485-1/CAN/RS485- 1. RS232 is used for PC communication 2. RS485-1/CAN is used for communication with the inverter 3. RS485-2 is used for communication with the battery pack | ||
| Certification | UN38.3, MSDS, UL1642 (Cell), IEC62619 (Cell) | ||
Why Choose MANLY?
1. 12+ years experience, provide customers with the tailored battery module to meet different applications requirements
2. Offer professional and complete battery solutions for customized application
3. 66+ professional engineers, R&D center, and testing center with rigorous team organization, advanced equipment, and enormous investment
4. One-to-one pre-sale/sale/after-sale professional technical support
5. 7*24hours, 365 days available to respond quickly to customers' needs
LiFePO4 Batteries VS Lead Acid Batteries
| LiFePO4 Batteries | VS | Lead Acid Batteries |
| 40% Lighter | Weight | Heavy |
| 3,500+ | Cycle life | 300~500 |
| Better stability | Performance | Stability is poor |
| High Security | Safety | Lowe Security |
| 700℃ | Ignition point | 200℃ |
Cooperation Partners
FAQ
Q: How do you ship the goods and how long does it take to arrive?
A: It usually takes 7~10 days, airline, sea shipping, and the special line is also optional.
Q: What's the MOQ limit?
A: There is no MOQ for samples. For bulk order quantity, the more quantity, the cheaper.
Q: Can you produce the order with the customer's brand?
A: Yes, of course. OEM & ODM service is warmly provided.
Q: What about the lead time?
A: If it has in the stock, samples need 3~5 days, if not, samples need 20~25working days; mass production will be around 10 ~ 15 working days, it depends on whether the battery is a normal one or a custom one.
Q: What voltage and capacity range do you have for the lead-acid replacement?
A: There is a big range ranging from 3Ah to 250Ah capacity and 3.2V to 72V voltage. The popular module includes: 6V 6Ah, 6V 7Ah, 12V 6Ah, 12V 12Ah, 12V 18Ah,12V 24Ah, 12V 36Ah,12V 50Ah, 12V 60Ah, 12V 100Ah,12V 120Ah, 12V 150Ah, 12V 180Ah, 12V 200Ah.
