Features
1. Intelligent Battery Pack Design
2. Environmental Friendly Chemistry
3. High Energy Density
4. High Power Density
5. Fast Charge Capability
6. Excellent Cycle Life

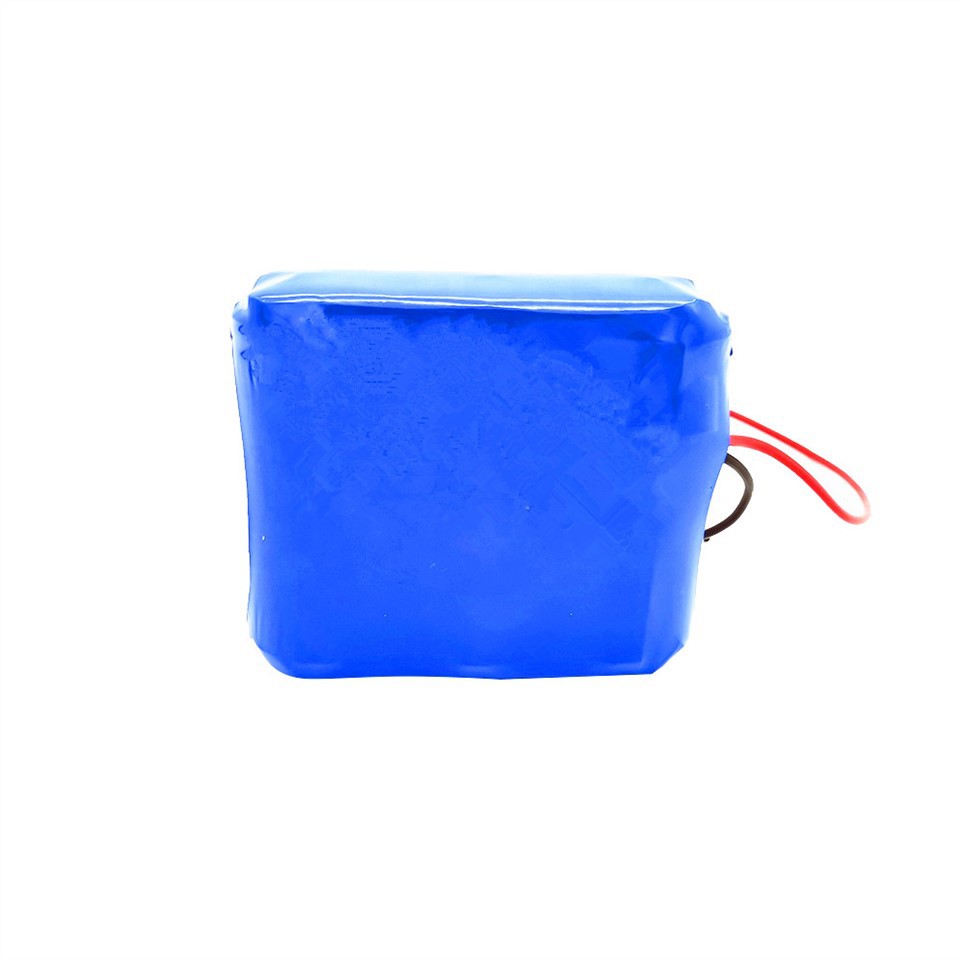

Specifications - 3.2V 15Ah LifePo4 Battery
Items | Parameters | Remarks | |
Rated Capacity | Typical | 15Ah | Standard discharge(0.2C) after standard charge |
Minimum | 15Ah | ||
Internal Resistance | ≤70mΩ | Alternating | |
Nominal Voltage | 3.2V | Mean operation voltage | |
Discharge cut-off voltage | 2.5V | Voltage at end of Discharge | |
Full charging voltage | 3.65V | Charging at end of Voltage | |
Standard Charge | Constant Current 0.2C Constant | Charge time:Approx 6.0h | |
Standard Discharge | Constant current 0.2C end voltage 2.5V | ||
Fast Charge | Constant Current 1C Constant Voltage 3.65V 0.02C5A cut-off | Charge time:Approx 2.5h | |
Fast Discharge | Constant Current 1C end Voltage 2.0V | ||
Cycle Characteristic | 2000 times | 100% DOD | The residual capacity is no less |
4000 times | 80% DOD | ||
7000 times | 50% DOD | ||
Maximum Continuous | 2C | Pulse discharge current: 5 C | |
Operation Temperature | Charge | 0~55℃ | 60±25%R.H. bare battery |
Discharge | -20~60℃ | ||
Storage Temperature | Less than 1 year | -20~25℃ | 60±25%R.H. at the shipment |
Less than 3 months | -20~45℃ | ||
