Overview
With excellent production and quality materials, the battery has superior safety performance and will not explode or catch fire. The battery has high energy density and high average output voltage. Self-discharge is small, less than 2% per month (recoverable), and there is no memory effect. The working temperature range is -20℃～60℃. Having excellent cycle performance, fast charging and discharging, charging efficiency up to 100%, and high output power, but with a long service life. At the same time, it does not contain toxic and harmful substances.
Features

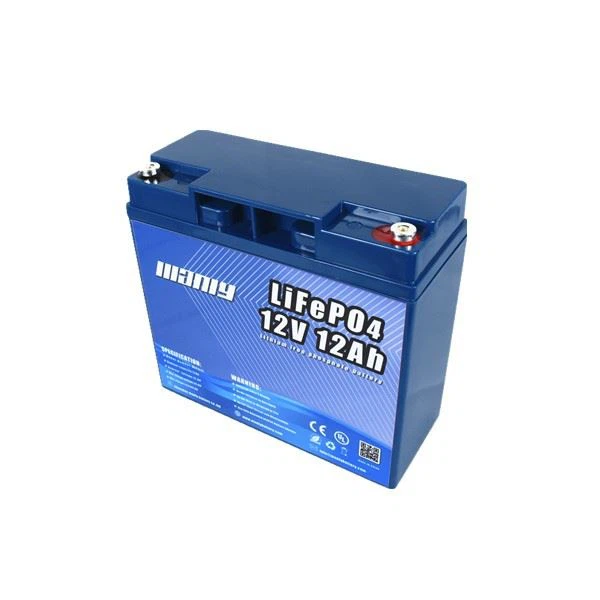

Lithium 12V 12 Amp hour Battery
This is a new high-performance sealed cylindrical battery with large capacity, low noise, long cycle life and easy disassembly and assembly. The lithium battery’s unique b uilt-in Battery Management System (BMS) protects it from overcharge, deep discharge, overloading, overheating and short circuit, and excessive low self-discharge rate ensuring up to 1 year maintenance-free storage. Built-in low-temp cut off prevents charging under 23 °F (-5 °C).
Parameters
| Battery item | Lithium 12V 12 Amp hour Battery |
| Brand name | MANLY |
| Model No. | MLP1212A |
| Nominal Voltage | 12V |
| Nominal Capacity | 12AH |
| Minimum Capacity | 12AH |
| Stored Energy | 154 Wh |
| Charge Cut-off Voltage | 14.8V±0.2V |
| Discharge Cut-off Voltage | 10.0V |
| Continuous Charge Current | 12A |
| Discharge Peak Current | 24A (307W) |
| Fast Charge Current | 1C |
| Cycle Life | ≥ 2000 cycles, DOD 100% |
| Dimension | 151mm x 98mm x 95mm (Same as lead-acid battery YUASA NP12-12) |
| Discharge Temperature Range | -20°C – 60°C |
| Charge Temperature Range | 0℃ to 45 ℃ |
| Storage Temperature | 0°C – 45°C |
| Water Dust Resistance | IP55 |
| Outer Package Material | ABS case |
| BMS | Yes |
| OEM/ODM | Welcomed |
| Designed Calendar Life | >10 Years |
Let us know your request and we will handle the rest for you: Customize for particular usage and realize the particular function
MANLY Battery Factory Overview
Why Choose MANLY Battery?
1.Many years of production experience 20 years of craftsmanship, only focus on the field of lithium batteries.
2.We have UL/CE/FCC/ROHS/UN38.3/MSDS and etc.
3.Usually, we haven't stable stock in the warehouse. for samples is around 20 ~ 25 working days, for mass production is around 15 ~ 20 working days.
4.Passed ISO9001 international quality management system.
Applications Of 12V Lithium Battery
Packaging & Shipping
FAQ
Q: How long of the shipping time?
A: It always needs 3-10 days by express such as DHL and UPS, 15-50 days by China Post, 10-30 days by sea.
Q: Can you produce the order with the customer's brand?
A: Yes, of course. OEM & ODM service is warmly provided.
Q: What do you have for the lead-acid replacement?
A: MANLY Lithium batteries provide more Wh/Kg while also being between 1/2 and 1/3 the weight of its SLA equivalent.
Q: What are the application for the lifepo4 12V lithium deep cycle battery?
A: Great for marine, RV, floor sweepers, lift gates, UPS systems, solar energy storage.
Q: What are the advantages of the LiFePO4 battery compared to the SLA/VRLA/lead-acid?
A: High cycle life 3500+ times
2.Safest lithium chemistry with high energy
3.In built-in over-charge and over-discharge protection
4.Internal cell balancing
