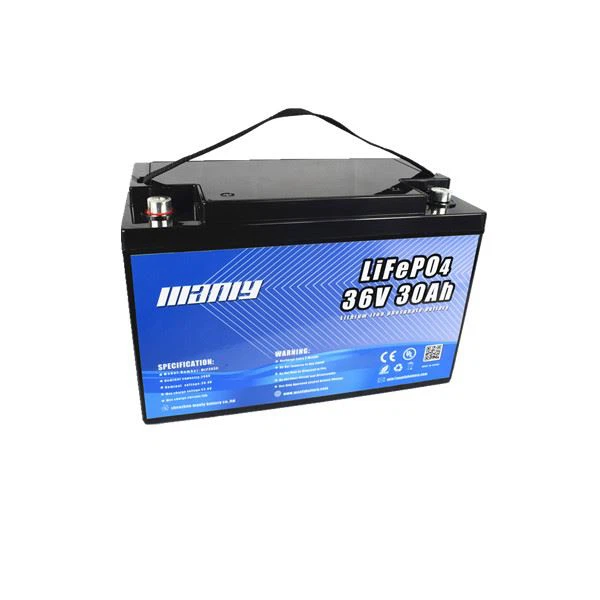

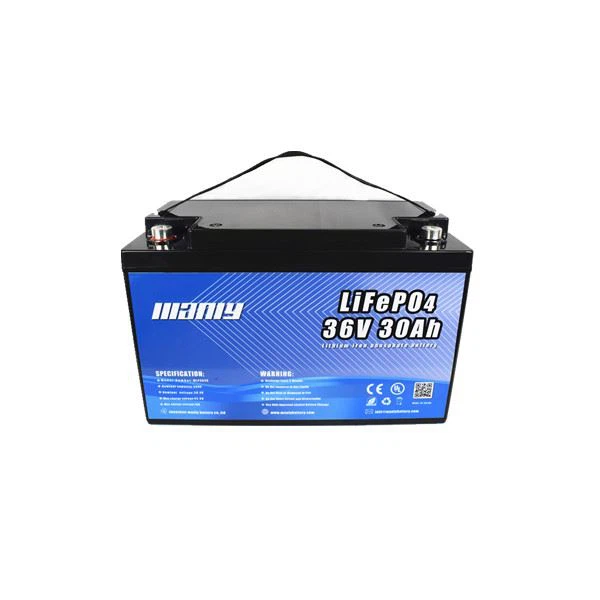

OEM 36V 30Ah rechargeable lithium battery with 3.2V lifepo4 battery cell for mobility scooter electronic Forklifts using
The MANLY Lithium Iron Phosphate (LiFePO4) Battery Model MLP3630 is a state-of-the-art 36V 30Ah battery. Designed primarily for loads requiring higher voltages to operate, this battery is ideally suited for applications such as higher voltage motors where 12V is simply not enough, electric vehicles such as e-bikes and e-scooters, and various robotics operating at 36V. This battery features a small and compact form factor designed for the smallest footprint. The battery has built-in a BMS/PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry, and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 6A, with a DC barrel plug. Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.
Feature:
1. Long cycle life, large capacity, and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in start-up and climbing
7. High-temperature performance, can up to 75℃
8. Environmental friendly
9. Lighter weight smaller size
10. Most safe no explosion no fire
Specifications:
Item | General Parameter | Remark |
Model | 36V 30Ah lifepo4 battery | 12S5P 32700 LFP cell |
Nominal Capacity | 30Ah | |
Nominal Voltage | 36V | Mean Operation Voltage |
Weight | Around 9Kg | |
Dimension | 230*195*170mm | Customized |
Charge | Standard Charge Current 5.0A | Charge time: Approx 6h |
Maximum Charge Current 10.0A | Charge time: Approx 4h | |
Charge Voltage 43.8V | ||
Discharge | Continuous Discharge Current ≤30.0A | |
Maximum Instantaneous Discharge Current ≤90.0A | ||
Discharge Cut-off Voltage 26.4V | ||
Operation Temperature | Charge Temperature 0~45℃ | |
Discharge Temperature-10~60℃ | ||
Over Charge Protection Voltage | 3.65V±25mV | |
Over Charge Recovery Voltage | 3.50V±25mV | |
Over-Discharge Protection Voltage | 2.0V±25mV | |
Over-Discharge Recovery Voltage | 2.3V±25mV | |
Over Current Protection Current | 120A | |
