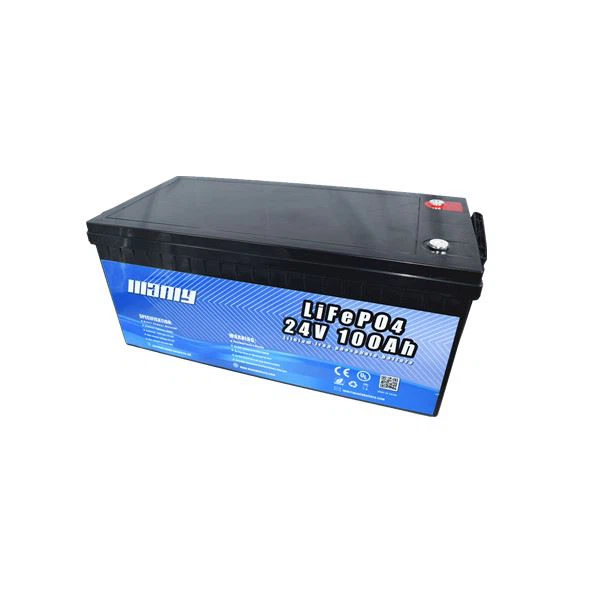

24V 100Ah AGV battery with smart BMS CAN RS485 protocol, using 32700 battery cell, 8S17P assembly, high energy density, long cycle life 2000+ times, 300A peak discharge current, continuous discharge current 60A.
Features:
1. Long life cycle, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in start up and climbing
7. High temperature performance
8. Lighter weight smaller size
Characteristics:
Characteristics | Parameter | Condition |
Nominal Capacity | 100Ah | Minimum capacity98Ah |
Nominal Voltage | 25.6V | |
Max charge voltage | 28.4±0.2V | |
Discharge Cut-off Voltage | 20-22V | |
Standard Charge Current | 20A | |
Standard Discharge Current | 20A | |
Max continuous charge current | 60A | |
Max continuous discharge current | 60A | |
Max. Pulse Discharge Current | 300A | |
Cycle life | >2000 | 80%DOD@ 0.2C |
| Operating Temperature | Charge, 0℃ ~ 45℃ | |
Discharge, -10℃ ~ 60℃ | ||
Storage Temperature | -20 ~ 45℃ | ≤ 1 month |
-20 ~ 35℃ | ≤ 3 months | |
-20 ~ 25℃ | ≤ 12 months | |
25℃ | > 12months | |
