Features:

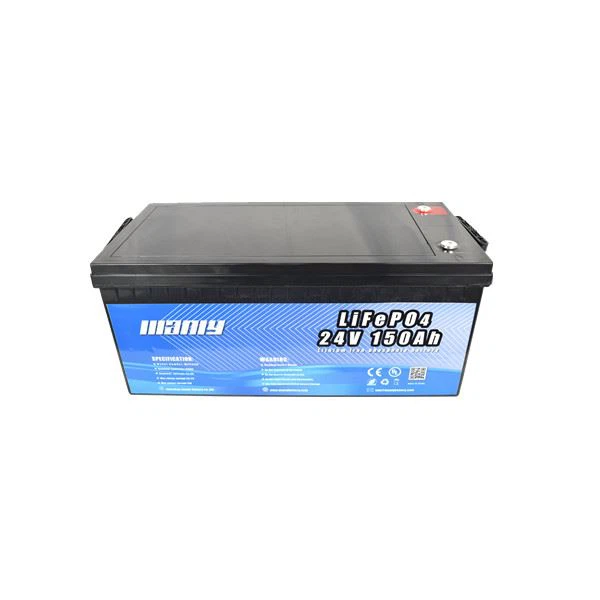

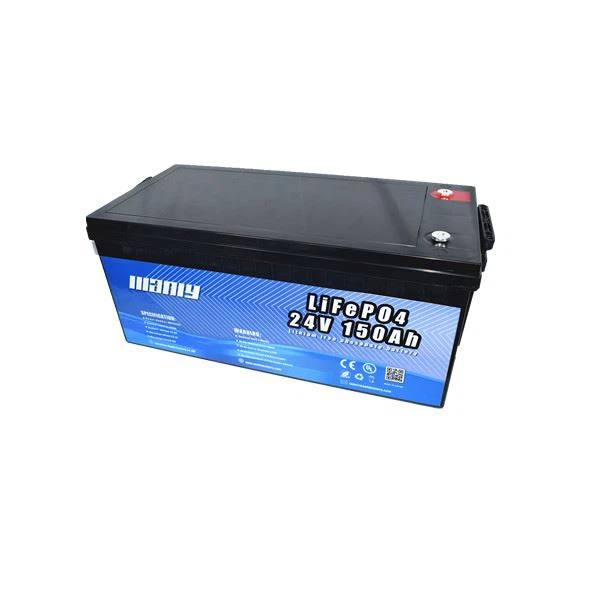

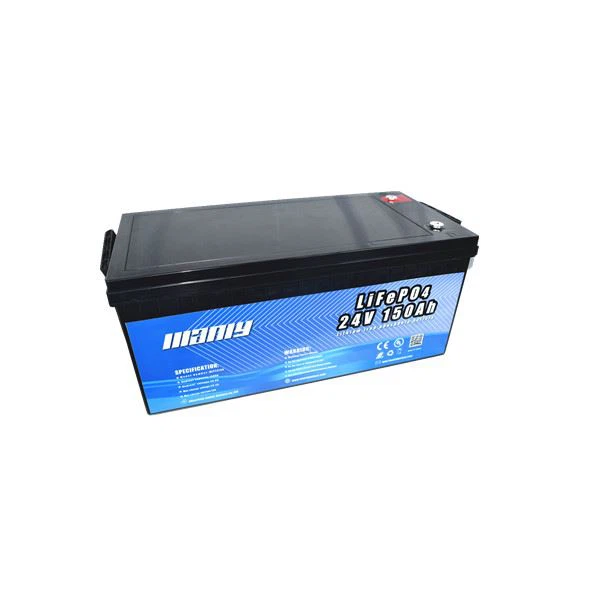

1. Manly 24V 150Ah lithium battery is assembled by our own 3.2V lifepo4 cell 32700
2. We can also make 2pcs of 24V 75Ah in parallel to make 24V 150Ah for you
3. Over 2000 cycle life, up to 10~15 years use
4. We can supply the whole 6V 12V 24V 36V 48V 72V lithium battery pack lines or the 3.2V 32700 single cells on your requirements
5. Stable charging and discharging performance, good discharging ability at high load, resistance of high temperature
LiFePO4 Battery 25.6V 150Ah Specification:
Item | Parameters | Note |
Model | ML24150 | |
Nominal Voltage | 25.6V | |
Nominal Capacity | 150Ah | Discharge : 0.2C Cut-off Voltage:20V |
Minimum Capacity | ≥145Ah | Discharge : 0.2C Cut-off Voltage: 20V |
Cell Type | IFR32700 | |
Pack Method | 8S25P | |
Energy | 3840W | |
Charge Voltage | 29.2V | |
Discharge cut-off voltage | 20V CC/CV | |
Charge Method | ||
Standard Charge Current | 30A | Can be customized |
Max. Charge Current | 150A | |
Standard Discharge Current | 30A | Can be customized |
Max. Continues Discharge current | 75A | |
BMS Functions | Over charge, over discharge, over current, short circuit, and temperature protection. | |
Design Life | 10+ year | 25℃ |
