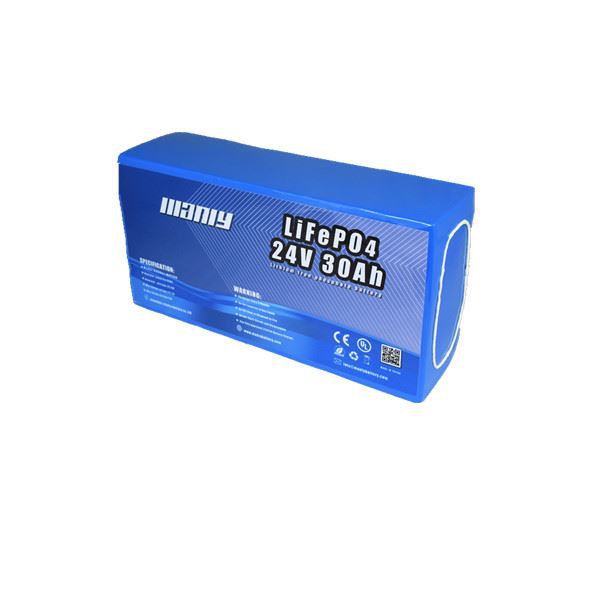

24Volt Battery:
Item | Specification |
Chemistry | Li-ion/Lithium ion/LiFePo4/LFP |
No. of cells | 32700 6Ah 8S5P |
Capacity | 30Ah (Charge and discharging at 0.2C) |
Nominal Voltage | 24V |
Standard charge voltage | 29.2±0.05V |
Standard discharge voltage | 20±0.05V |
Impedance | ≤ 150 mΩ |
Standard Charge Current | 0.2C |
Maximum Charge Current | ≤30Ah (Support adjustable) |
Maximum Discharge Current | ≤30Ah (Support adjustable) |
Maximum Pulse discharge current | ≤ 60A (can be adjustable) |
Charge end current | 0.01C |
Operation Temperature Range | Charge: 0~45℃ |
Discharge: -20~60℃ | |
Storage Temperature | Less than 1 year: -20~25℃ |
Less than 3 months: -20~40℃ | |
Weight | Approx 5.3kg |
Dimension | 318*155*85mm (Support adjustable) |
Characteristics:
1. Extremely safe and stable chemistry: BMS or PCB built inside to protect the battery over charge and discharge.
2. Long life-cycle: Over 2000 times cycle life.
3. Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery.
4. Wide operating temperature: High temperature resistance(-20~60 degrees Celsius).
5. Steady performance: High power output, 1C continuous, 3C pulse for normal cells, Low self-discharge rate, less than 3% monthly.
6. No memory effects and highly efficient charge: It can be recharged anytime, no reduction of the capacity
7. Green product: Environment friendly, clean and green energy, no pollution on our environment.
8. Quality assurance: ISO9001 ISO14001 quality management certificates CE,ROHS UN38.3,TUV,CB etc...product certificates.
