Battery Details:

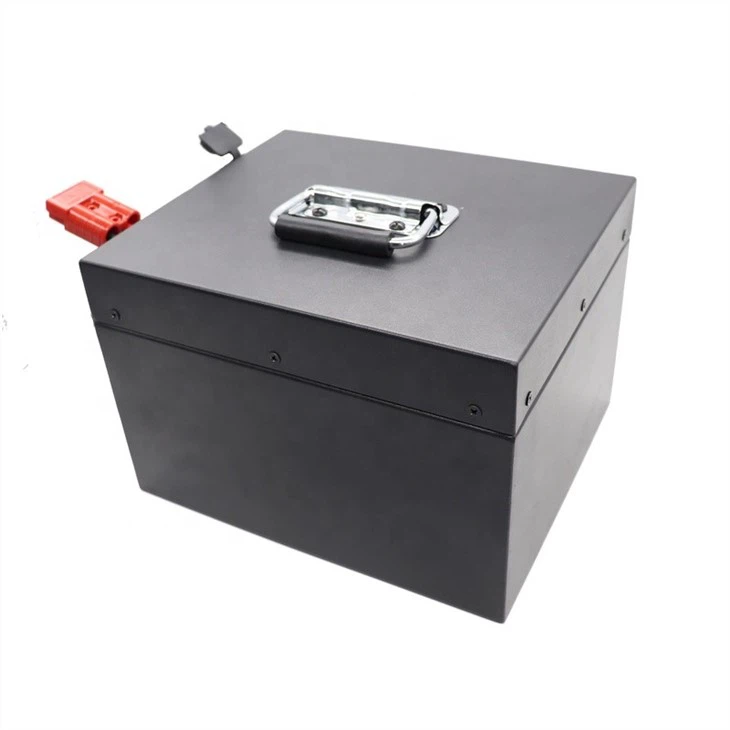

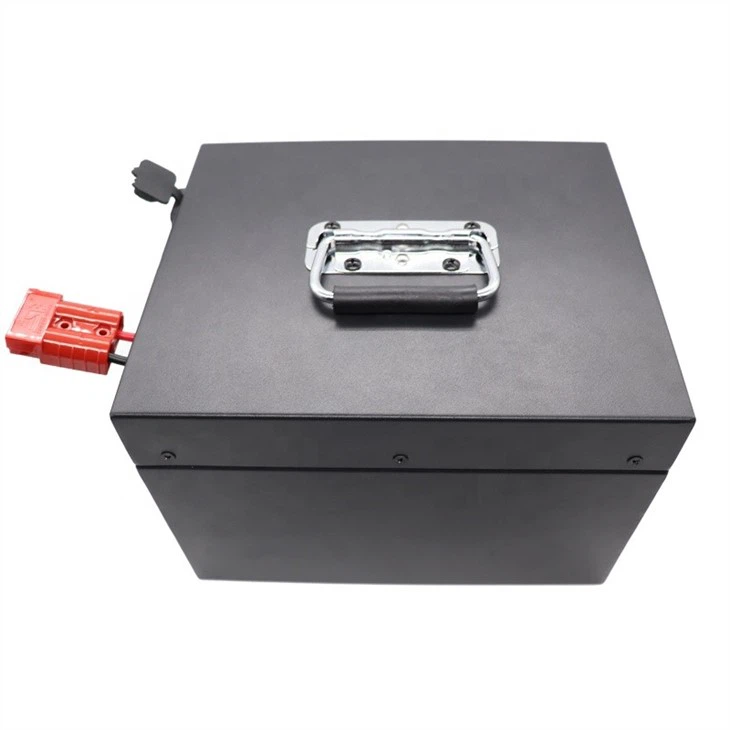

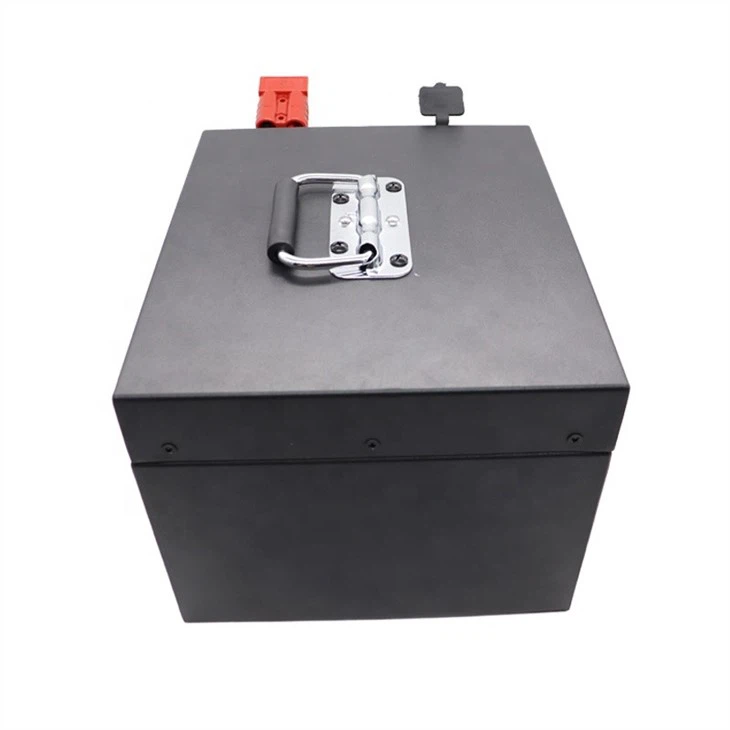

High power AGV vehicle , Robot 24V 50Ah lifepo4 battery pack
- Capacity :52AH /24V lifepo4 battery
- Max continuous charge/discharge current:50 A
- Over current protection:200-370A
- Charge voltage:28.8V Max
Applications:
* AGV/Robot
* Mobile base station back-up power
* Electric ship
* Uninterrupted Power Supply
* Golf cart
* Patrol car
* UAV
* Low-speed electric cars
No. | Item | Specifications |
1 | Cell in pack | LIFEPO4 CELLS |
2 | Nominal voltage | 24V |
3 | Working Voltage Range | 16V-28.8V |
4 | End of Charge voltage | 16V+/- 0.05V |
5 | Max Capacity | 50Ah |
6 | Minimal capacity | 48Ah |
7 | Continuous discharging current | 50A (Customize) |
8 | Continuous charging current | 10A@0.2C (Customize) |
9 | Short circuit protection | Automatic recovery |
10 | Temperature shut down (Charge/discharge) | 60°C ~ 70°C |
11 | Operating temperature | Charging: 0°C ~ 45°C |
12 | Discharging: -20°C ~ 60°C | |
13 | Storage temperature/humidity | Temperature -10°C ~ +35°C Humidity 65%±20%RH |
14 | Dimension | Customized |
15 | Weight | Around 14.5kg |
16 | Battery BMS | Built-in Smart BMS with RS485, CAN BUS interface |
